Description
Overview

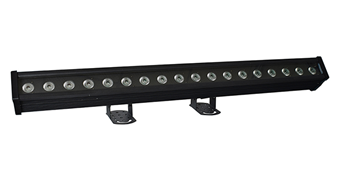

The PL-WW-18 QUAD is a professional-grade IP65 LED Wall Washer equipped with 18 × 12W RGBW 4-in-1 LEDs, delivering powerful color mixing, smooth dimming, and consistent illumination for architectural, outdoor, and stage applications. With a premium CRI of 96, stable ±100K CCT accuracy, flicker-free PWM (2kHz–25kHz), and a long MTBF ≥ 20,000 hours, this fixture ensures exceptional image quality and long-term reliability for demanding environments.
Designed for both permanent installations and touring, the PL-WW-18 QUAD features multiple DMX channel modes, a rugged IP65 housing, and versatile beam angle options, making it ideal for building facades, event lighting, landscape illumination, and professional productions.
Feature
- 18× 12W RGBW 4-in-1 high-power LEDs
- High CRI 96 for accurate, natural color rendering
- CCT consistency ±100K for uniform white balance
- Flicker-free (PWM 2kHz–25kHz) — suitable for filming and broadcast
- Smooth 0–100% linear dimming
- Beam angle 25° (optional 15° / 45°)
- Strobe up to 25 fps
- Multiple DMX modes: 4 / 6 / 7 / 8 / 3 channels
- IP65 waterproof housing for outdoor applications
- Long LED lifetime 50,000 hours, MTBF ≥ 20,000 hours
- Universal AC input 90–260V
- 3-pin XLR DMX In/Out
- Digital display for easy configuration
