Overview

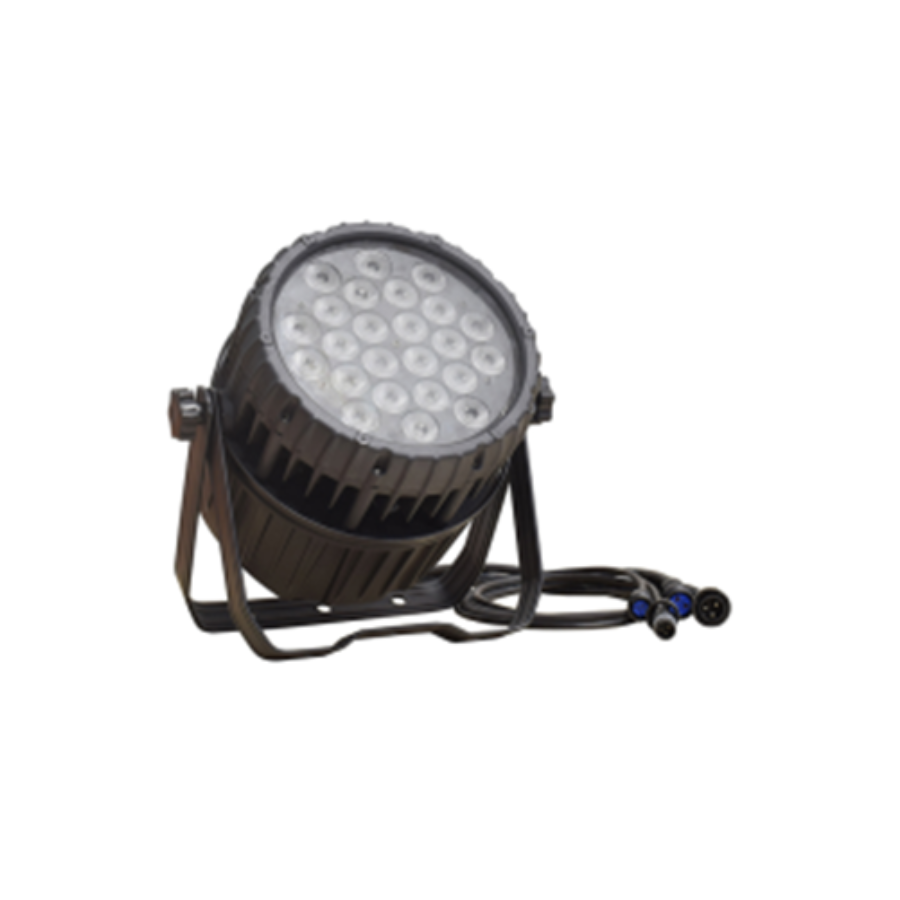

The PL-PN-24QUAD is a professional IP65-rated LED PAR fixture designed for outdoor stages, live events, architectural lighting, and rental applications. Equipped with 24 high-output 12W 4-in-1 RGBW LEDs, the fixture delivers powerful brightness, rich color mixing, and smooth lighting performance for demanding professional environments.
Featuring a standard 25° beam angle with optional 30° and 45° lenses, the PL-PN-24QUAD offers flexible coverage for both focused and wide-area illumination. The fixture supports smooth 0–100% linear dimming, high-speed strobe effects, and flicker-free PWM operation, making it suitable for stage performances, broadcast studios, and video production.
With multiple DMX channel modes, end-to-end power linking capability, digital display control, and rugged IP65 housing, the PL-PN-24QUAD ensures reliable performance in both indoor and outdoor applications.
Key Features
- 24 × 12W high-power 4-in-1 RGBW LEDs with vivid color mixing
- IP65-rated housing for indoor and outdoor applications
- Standard 25° beam angle with optional 30° and 45° lenses
- Smooth 0–100% linear dimming performance
- Flicker-free PWM operation (≥2kHz – 25kHz) for broadcast and video use
- Strobe effect from 0–20 F.P.S
- Multiple DMX channel modes: 3 / 4 / 6 / 7 / 8 CH
- End-to-end power linking capability
- Digital display for easy setup and operation
- CRI up to 96 for accurate color rendering
- LED lifetime up to 50,000 hours with MTBF ≥20,000 hours
- Wide-range AC 100–240V auto-sensing power supply
- PowerCon IN/OUT and 3-pin XLR DMX connectivity
