Overview

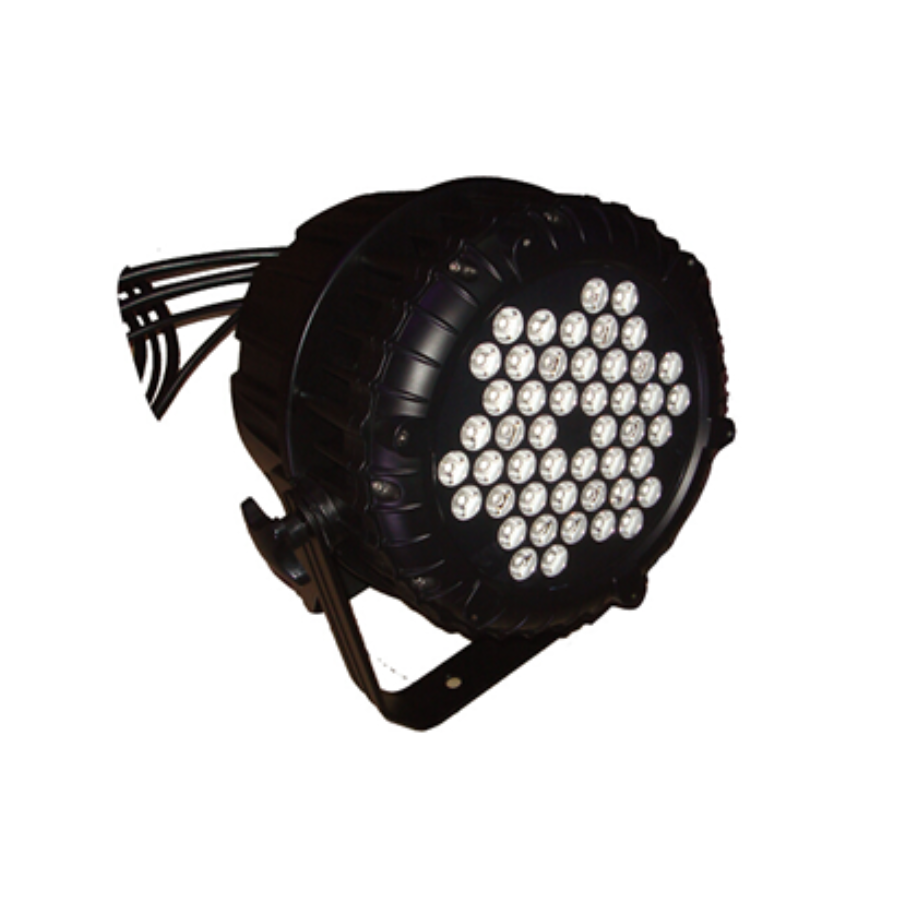

The PL-PW-48RGBW (5W) is a professional-grade IP65 outdoor LED PAR fixture designed for stage productions, rental companies, architectural lighting, concerts, TV studios, and large-scale event applications. Equipped with 48 × 5W high-efficiency RGBW LEDs, the fixture delivers powerful output, rich color mixing, and smooth, even wash effects for both indoor and outdoor environments.
With a high CRI ≥96, flicker-free PWM dimming technology, and precise color temperature consistency, the PL-PW-48RGBW ensures excellent color accuracy for live events, broadcasting, filming, and professional stage performances. Its rugged weatherproof housing, multiple DMX control modes, and PowerCON connectivity provide reliable performance, easy installation, and flexible integration into professional lighting systems.
Built for demanding touring and permanent installations, the fixture offers stable long-term operation with up to 50,000 hours LED lifespan and MTBF ≥20,000 hours.
Key Features
- 48 × 5W high-efficiency RGBW LEDs for bright and powerful color output
- IP65 waterproof design suitable for outdoor stages and architectural lighting
- High CRI ≥96 for accurate and natural color reproduction
- Flicker-free PWM dimming (≥2kHz–25kHz) ideal for TV, broadcast, and filming applications
- Smooth 0–100% linear dimming performance
- Multiple DMX channel modes: 3 / 4 / 6 / 7 / 8 CH
- Beam angle: 25° standard (optional 30° / 45°)
- Uniform CCT consistency within ±100K
- Dynamic strobe effect with adjustable speed from 0–20 F.P.S
- DMX512 protocol with end-to-end power and signal linking
- PowerCON input & output connectors for reliable power distribution
- Wide AC 100–240V auto-sensing power supply
- Long LED lifetime up to 50,000 hours
- MTBF ≥20,000 hours for stable professional operation
- Rugged touring-grade housing ideal for rental and live production environments
