PL-PD-4-50W

Model PL-PD-4-50W
Device Type LED PAR Light
SKU: PL-PD-4-50W Category: Tags: ,

Overview

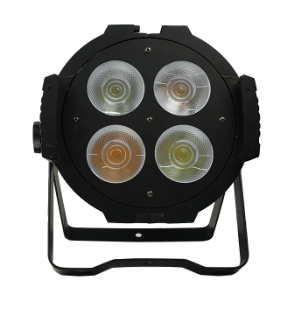

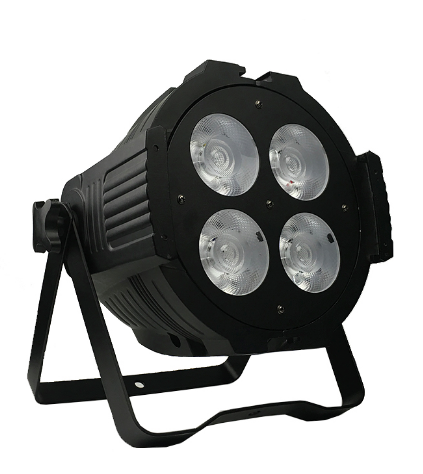

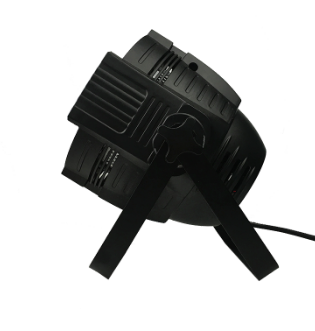

The 4 × 50W COB LED PAR Light is a high-performance lighting fixture designed for professional stage, studio, theater, broadcast, and event applications. Featuring four powerful 50W COB LEDs with a balanced combination of Warm White and Cool White sources, it delivers exceptional brightness, natural color reproduction, and smooth white-light blending. With a high CRI of 96, flicker-free operation, and precise dimming capabilities, this fixture is ideal for environments where color accuracy and visual comfort are essential. Its compact design, reliable DMX control, and professional connectivity options make it suitable for both fixed installations and rental applications.

Key Features

  • 4 high-output 50W COB LEDs (2 Warm White + 2 Cool White)
  • High CRI 96 for accurate and natural color reproduction
  • Excellent CCT consistency of ±100K
  • Wide 45° beam angle for even light coverage
  • Smooth 0–100% linear dimming
  • Variable strobe effect up to 20 FPS
  • Flicker-free operation with PWM frequency from 2kHz to 25kHz
  • DMX512 control with 8-channel mode
  • PowerCON IN/OUT for convenient power linking
  • 3-pin XLR IN/OUT for DMX daisy-chain connectivity
  • Digital display for easy configuration and operation
  • Universal AC 90–260V auto-sensing power supply
  • Long LED lifespan up to 50,000 hours
  • Lightweight and compact design for versatile installation

Technical Specifications

Specification Details
Product Name 4 × 50W COB LED PAR Light
Light Source 4 pcs 50W COB LEDs (2 Warm White + 2 Cool White)
LED Power 50W × 4 pcs
Color System Warm White + Cool White
CRI (Color Rendering Index) 96
CCT Consistency ±100K
Beam Angle 45°
Dimmer 0–100% Linear
Strobe Rate 0–20 FPS
Flicker-Free PWM ≥ 2kHz – 25kHz
Control Protocol DMX512
DMX Channels 8 CH
Display Digital Display
Control Feature End-to-End Capability
Input Voltage AC 90–260V Auto-Sensing
Power Consumption 200W
Power Connection PowerCON IN / OUT
DMX Connection 3-pin XLR IN / OUT
LED Lifetime 50,000 Hours
MTBF ≥ 20,000 Hours
IP Rating IP20
Dimensions (L × W × H) 320 × 220 × 330 mm
Weight 3.2 kg
