Model PL-WWPX-18QUAD
Device Type LED Wall Washer
Category: Tags: , ,

Overview

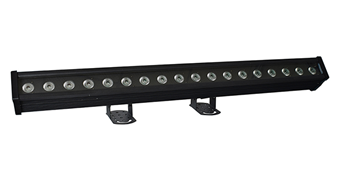

PL-WWPX-18QUAD is a high-performance IP65 LED Wall Washer designed for professional outdoor and indoor applications. Equipped with 18pcs 4-in-1 RGBW 12W LEDs, pixel mapping capability, and wide DMX modes up to 72 channels, this fixture delivers powerful color mixing, smooth dimming, and dynamic visual effects for architectural lighting, stage productions, and touring events.

With a high CRI of 96, excellent CCT stability ±100K, flicker-free performance from 2kHz–25kHz, and a long MTBF ≥ 20,000 hours, the PL-WWPX-18QUAD ensures premium visual output and long-term reliability. Weatherproof IP65 construction makes it ideal for permanent outdoor installations or heavy-duty event use.

Feature

    • 18× 12W RGBW 4-in-1 LEDs with vivid color mixing

    • Pixel mapping function for advanced visual programming

    • High CRI 96 for accurate and natural color reproduction

    • CCT consistency ±100K for uniform white tone across fixtures

    • Flicker-free operation (PWM 2kHz–25kHz) — camera & broadcast friendly

    • Wide DMX modes: 4 / 5 / 6 / 8 / 72 channels

    • Smooth 0–100% linear dimming

    • Adjustable beam angle 25° (optional 15°, 45°)

    • Strobe up to 25 fps

    • Rugged IP65 waterproof housing

    • Long LED lifetime 50,000h, MTBF ≥ 20,000h

    • Universal AC input 90–260V

    • 3-pin XLR DMX In/Out

Overview

PL-WWPX-18QUAD is a high-performance IP65 LED Wall Washer designed for professional outdoor and indoor applications. Equipped with 18pcs 4-in-1 RGBW 12W LEDs, pixel mapping capability, and wide DMX modes up to 72 channels, this fixture delivers powerful color mixing, smooth dimming, and dynamic visual effects for architectural lighting, stage productions, and touring events.

With a high CRI of 96, excellent CCT stability ±100K, flicker-free performance from 2kHz–25kHz, and a long MTBF ≥ 20,000 hours, the PL-WWPX-18QUAD ensures premium visual output and long-term reliability. Weatherproof IP65 construction makes it ideal for permanent outdoor installations or heavy-duty event use.

Feature

    • 18× 12W RGBW 4-in-1 LEDs with vivid color mixing

    • Pixel mapping function for advanced visual programming

    • High CRI 96 for accurate and natural color reproduction

    • CCT consistency ±100K for uniform white tone across fixtures

    • Flicker-free operation (PWM 2kHz–25kHz) — camera & broadcast friendly

    • Wide DMX modes: 4 / 5 / 6 / 8 / 72 channels

    • Smooth 0–100% linear dimming

    • Adjustable beam angle 25° (optional 15°, 45°)

    • Strobe up to 25 fps

    • Rugged IP65 waterproof housing

    • Long LED lifetime 50,000h, MTBF ≥ 20,000h

    • Universal AC input 90–260V

    • 3-pin XLR DMX In/Out

Category Specifications
Model PL-WWPX-18QUAD
Light Source 18× 12W RGBW 4-in-1 LEDs
LED Lifetime 50,000 hours
CRI 96
CCT Consistency ±100K
Flicker-Free PWM ≥ 2kHz–25kHz
MTBF ≥ 20,000 hours
Optics Beam angle 25° (optional 15°, 45°)
Color Mixing RGBW
Pixel Mapping Supported
Dimmer 0–100% linear
Strobe 0–25 fps
Control Protocol DMX-512
DMX Channels 4 / 5 / 6 / 8 / 72 CH
Display Digital display
Input Voltage AC 90–260V
Power Consumption 200W
DMX Connections 3-pin XLR In/Out
IP Rating IP65
Length 102 cm
Width 9 cm
Height 19.5 cm
Weight 7.5 kg
