PL-PW2-54RGBW

Model PL-PW2-54RGBW
Type LED PAR LIGHT

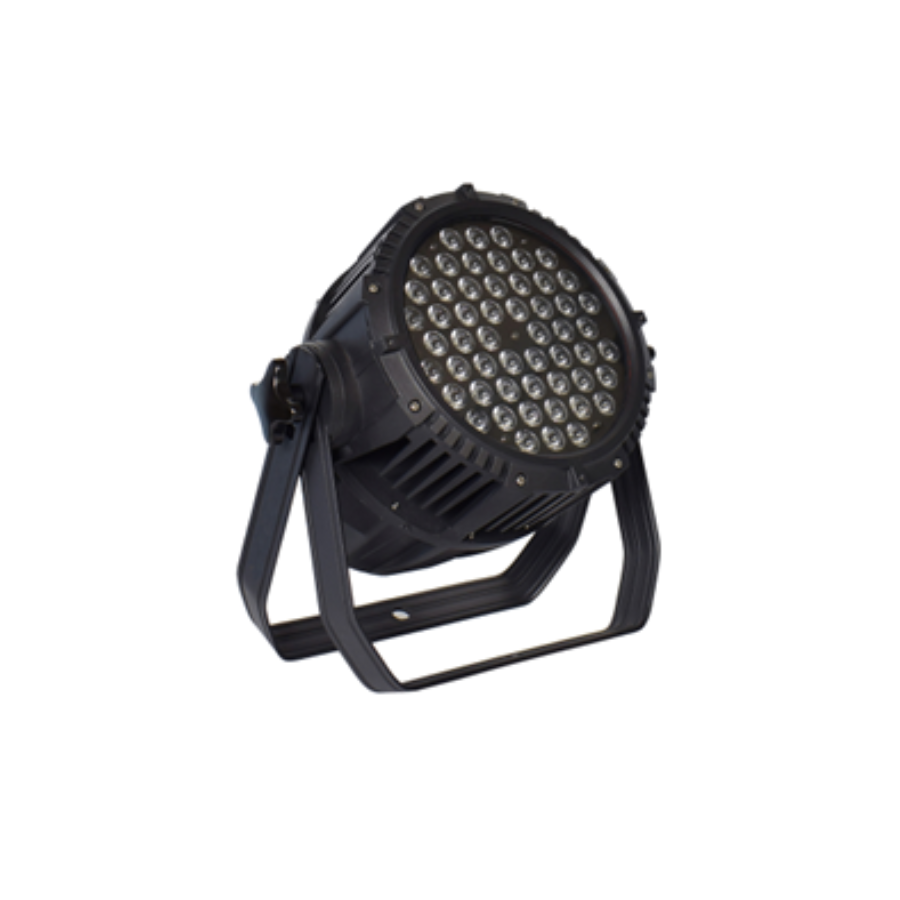

The PL-PW2-54RGBW IP65 LED PAR Light is a professional outdoor-rated RGBW PAR fixture designed for stage, event, architectural, and broadcast applications. Equipped with 54 high-efficiency 3W RGBW LEDs, it delivers powerful output, accurate color mixing, and excellent color consistency. With IP65 protection, flicker-free operation, and flexible beam angles, this fixture is ideal for both indoor and outdoor professional lighting systems.


Key Features

  • 54 × 3W high-brightness RGBW LEDs

  • IP65-rated housing for outdoor and indoor use

  • High color accuracy with CRI 96

  • Excellent white light consistency (±100K)

  • Flicker-free performance (PWM ≥2kHz – 25kHz), ideal for camera use

  • Smooth linear dimming from 0–100%

  • Multiple DMX channel modes: 3 / 4 / 5 / 6 / 8

  • Wide beam angle options: 25° (optional 30° / 45°)

  • Power and DMX end-to-end connection

  • Long LED lifetime and high system reliability

The PL-PW2-54RGBW IP65 LED PAR Light is a professional outdoor-rated RGBW PAR fixture designed for stage, event, architectural, and broadcast applications. Equipped with 54 high-efficiency 3W RGBW LEDs, it delivers powerful output, accurate color mixing, and excellent color consistency. With IP65 protection, flicker-free operation, and flexible beam angles, this fixture is ideal for both indoor and outdoor professional lighting systems.


Key Features

  • 54 × 3W high-brightness RGBW LEDs

  • IP65-rated housing for outdoor and indoor use

  • High color accuracy with CRI 96

  • Excellent white light consistency (±100K)

  • Flicker-free performance (PWM ≥2kHz – 25kHz), ideal for camera use

  • Smooth linear dimming from 0–100%

  • Multiple DMX channel modes: 3 / 4 / 5 / 6 / 8

  • Wide beam angle options: 25° (optional 30° / 45°)

  • Power and DMX end-to-end connection

  • Long LED lifetime and high system reliability

Specification Details
Light Source 54 × 3W RGBW LEDs
LED Lifetime 50,000 hours
Beam Angle 25° (optional 30° / 45°)
Color Mixing RGBW
CRI (Color Rendering Index) 96
CCT Consistency ±100K
Flicker-Free PWM ≥2kHz – 25kHz
Control Protocol DMX512
DMX Channels 3 / 4 / 5 / 6 / 8
Dimmer 0–100% linear
Strobe 0–20 fps
Display Digital display
Power Supply AC 100–240V, auto sensing
Power Consumption 180W
Power Connection Power in / out
DMX Connection 3-pin XLR in / out
MTBF ≥20,000 hours
IP Rating IP65
Dimensions (L × W × H) 29 × 35 × 26 cm
Weight 6.5 kg
