PL-PF-A300

Model PL-PF-A300
Type LED PROFILE

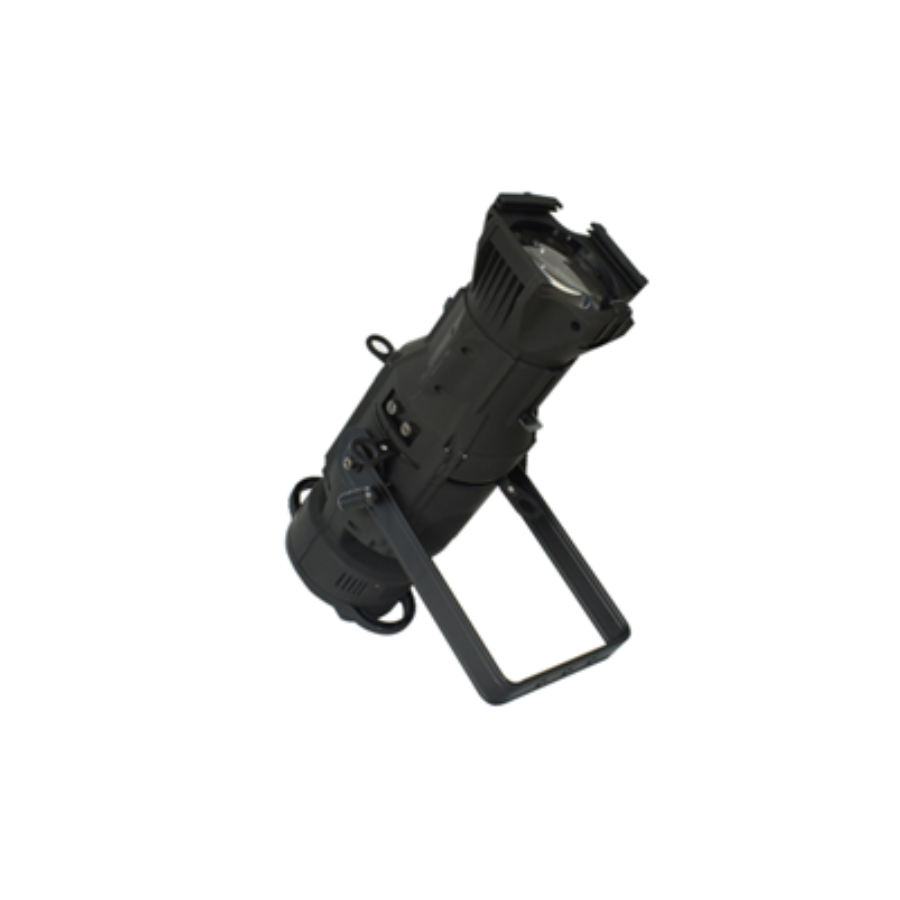

The PL-PF-A300 is a professional 300W LED Profile spotlight designed for theater, studio, broadcast, and stage lighting applications that require precise beam shaping and high-quality light output.

Powered by a high-performance COB LED, the fixture is available in Warm White, Cool White, or RGBW versions, offering flexibility for both white-light and color-mixing applications. With interchangeable beam angles, smooth linear dimming, and manual focus control, the PL-PF-A300 delivers clean, consistent illumination and sharp beam definition.

Its compact design, digital display, and DMX512 compatibility make it easy to integrate into professional lighting systems for indoor use.

Key Features

  • High-output 300W COB LED (Warm White / Cool White / RGBW options)

  • High-quality light with CRI 88–92

  • Interchangeable beam angles: 19° / 26° / 36° / 50°

  • Smooth 0–100% linear dimming

  • Manual focus for precise beam control

  • DMX512 control

    • 2 channels (White versions)

    • 6 channels (RGBW version)

  • Electronic strobe up to 25 flashes per second

  • Long LED lifetime for professional applications

  • Compact and lightweight housing

  • Designed for indoor use (IP20)

The PL-PF-A300 is a professional 300W LED Profile spotlight designed for theater, studio, broadcast, and stage lighting applications that require precise beam shaping and high-quality light output.

Powered by a high-performance COB LED, the fixture is available in Warm White, Cool White, or RGBW versions, offering flexibility for both white-light and color-mixing applications. With interchangeable beam angles, smooth linear dimming, and manual focus control, the PL-PF-A300 delivers clean, consistent illumination and sharp beam definition.

Its compact design, digital display, and DMX512 compatibility make it easy to integrate into professional lighting systems for indoor use.

Specification Details
Product Type LED Profile Light
Light Source 300W COB LED (Warm White / Cool White / RGBW)
Power Consumption 300W
Input Voltage AC 100–240V
Color Temperature 2800K – 3300K
CRI (Color Rendering Index) CRI 88–92
Beam Angle 19° / 26° / 36° / 50°
Dimmer 0–100% Linearly Adjustable
Focus Manual
Strobe 0–25 fps
Control Protocol DMX512
DMX Channels 2 CH (White) / 6 CH (RGBW)
Display Digital Display
IP Rating IP20
LED Lifetime 50,000 hours
MTBF ≥20,000 hours
DMX Connection 3-pin XLR IN / OUT
Length 64.3 cm
Width 20 cm
Height 20 cm
Weight 7.5 kg

PL-PF-A300
