Overview

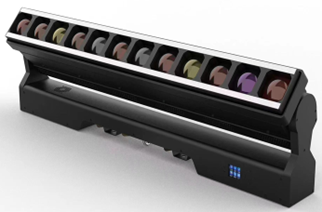

The PL-MB-12 is a high-performance linear LED moving head bar, engineered for professional applications including stage productions, live events, broadcast studios, and architectural lighting. Equipped with 12 × 40W RGBW high-power LEDs and an additional 144 RGB pixel LEDs, the fixture delivers intense output combined with dynamic pixel mapping capabilities. Featuring a wide motorized zoom range (3°–60°), ultra-smooth 32-bit dimming, and advanced RDM control, the PL-MB-12 ensures precise beam shaping and flexible programming. With flicker-free PWM technology and a high CRI ≥96, the fixture is fully optimized for broadcast and camera applications, delivering accurate color reproduction and stable performance.

Key Feature

• • High-output LED system12 × 40W RGBW LEDs for powerful brightness and color mixing
  • Advanced pixel mapping effects144 RGB pixels for dynamic visual effects
  • Wide motorized zoom3°–60° (beam to wash versatility)
  • Ultra-smooth dimming32-bit dimming (0–100%) for seamless fades
  • Flicker-free operationPWM range ≥2kHz to 25kHz, ideal for broadcast
  • High color accuracyCRI ≥96 for precise color rendering
  • RDM supportRemote configuration and monitoring
  • Multiple DMX modes24 / 36 / 60 / 72 / 144 channels
  • User-friendly interfaceIntegrated digital display for quick setup
  • Robust constructionDesigned for demanding professional environments

  ---

  APPLICATIONS

  • Stage lighting
  • Concerts & festivals
  • Broadcast & TV studios
  • Live events
  • Architectural lighting
