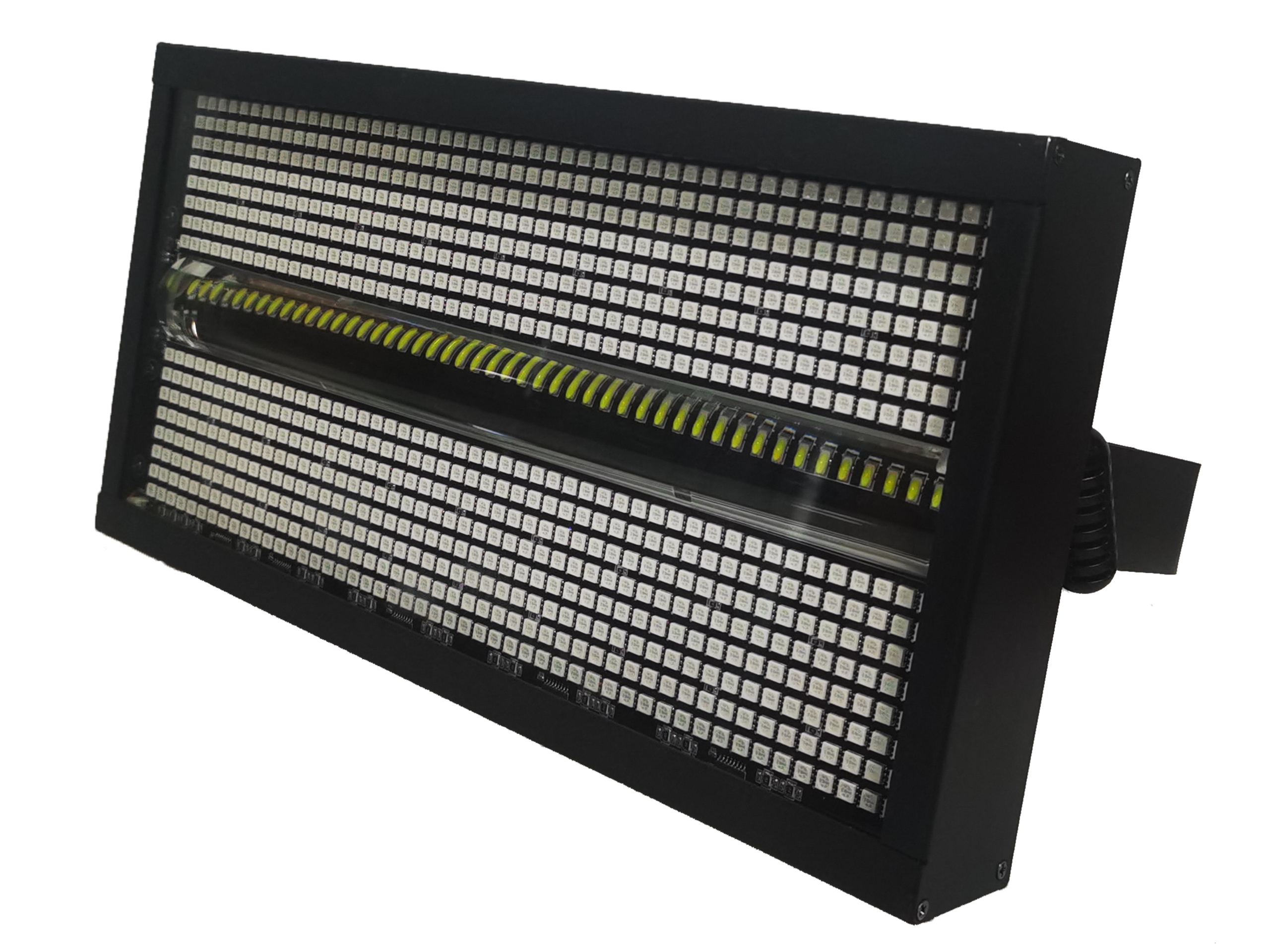

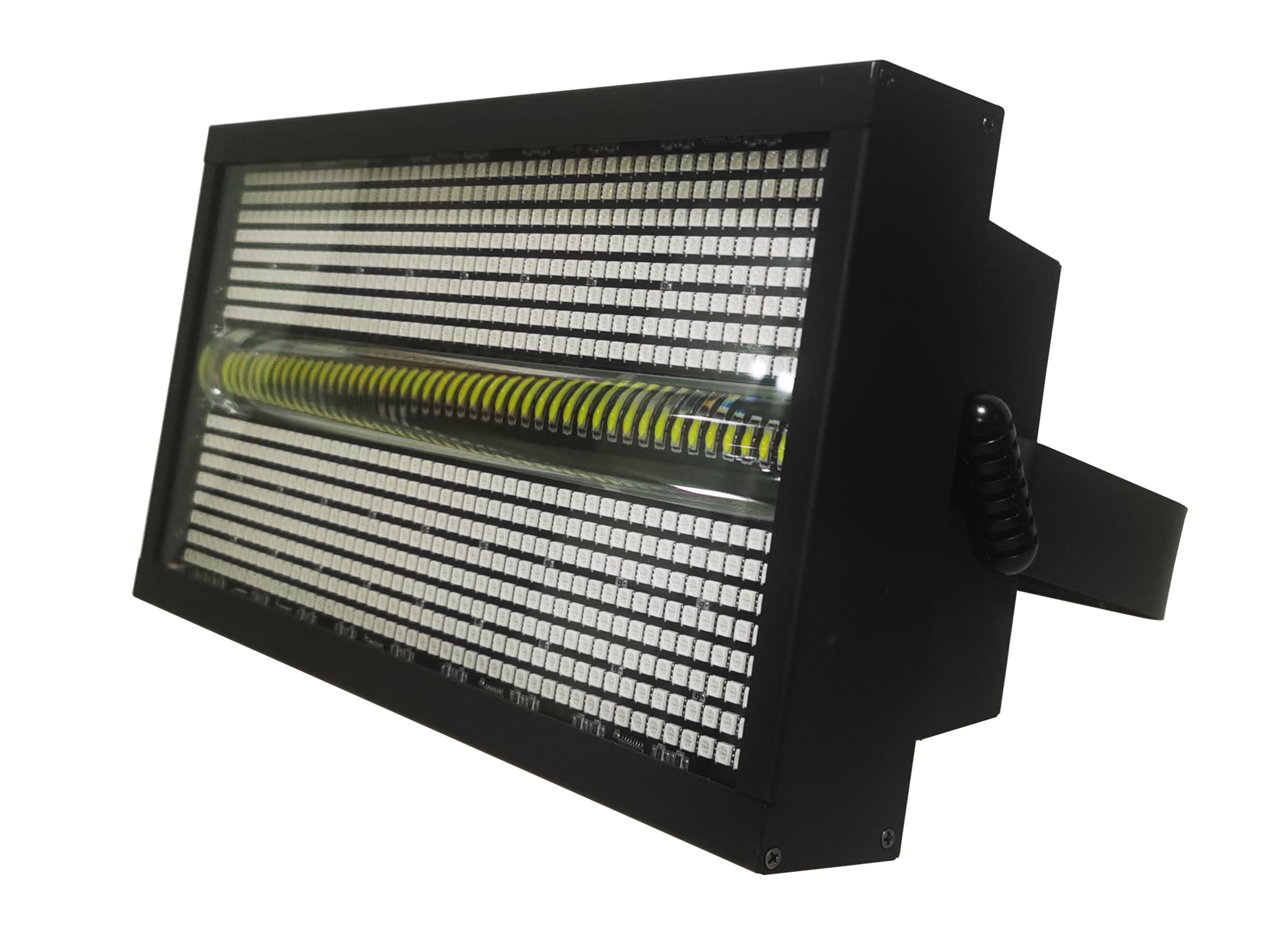

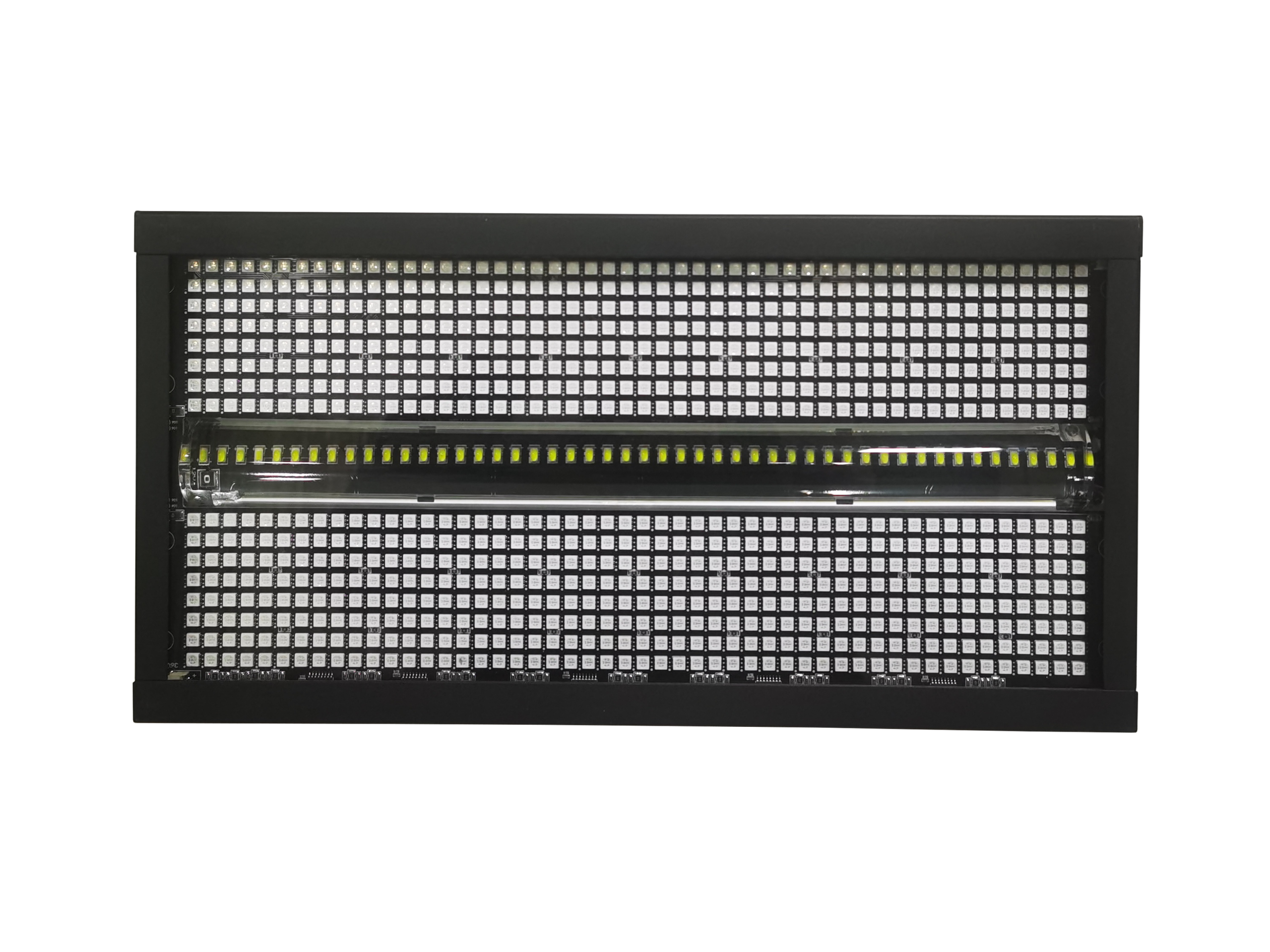

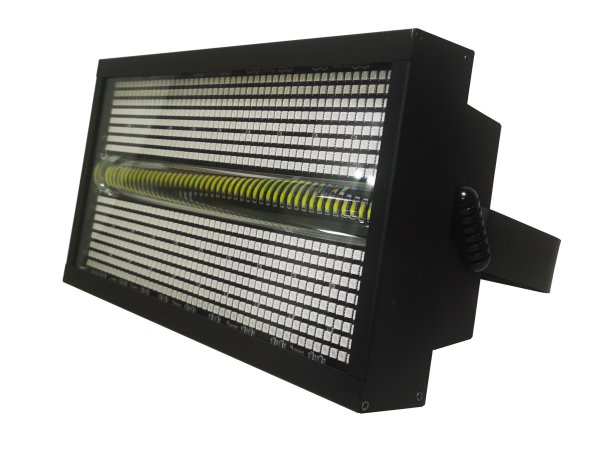

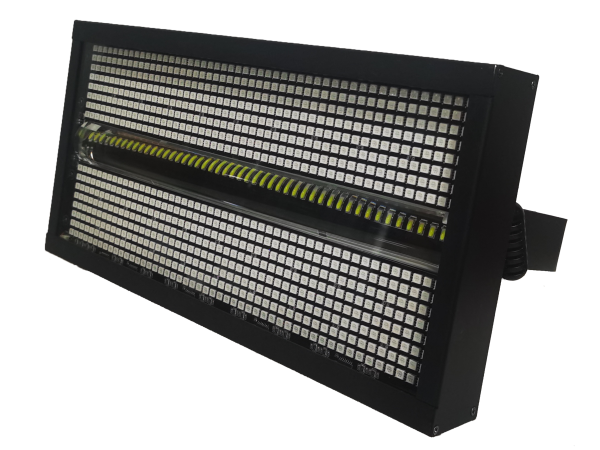

LED Strobe Light 800 x 0.3W

Overview

The LED Wall Washer Strobe Light is a high-performance fixture designed for stage, architectural, and event applications. Equipped with 800 × 0.3W RGB SMD LEDs and a central strip of 48 × 5W Cool White SMD LEDs, it provides stunning wash, strobe, and color effects with smooth dimming and precise color mixing. With advanced control options including DMX512, RDM, automatic, and master-slave, along with built-in program macros, this fixture ensures maximum flexibility and reliability. Its durable build and versatile functionality make it an ideal choice for professional lighting environments.

Key Features

Powerful LED Source: 800 × 0.3W RGB SMD LEDs + 48 × 5W Cool White SMD LEDs
Smooth dimming: 0–100% linear adjustment
Dynamic strobe rate: 0.35–25 Hz
Zoning effects: 40 RGB zones + 6 Cool White zones
Built-in programs: 25 RGB macros & 9 Cool White macros
Control options: DMX512 (1990 standard), RDM, automatic, master-slave
User-friendly interface: LCD display with 4-button touch menu
Beam angles: RGB 121°, Cool White 89°
Long lifespan: 50,000 hours average LED life
Lightweight design: 13.2 kg, compact housing
IP Rating: IP20 (indoor use)

Category	Details
Light Source	• 800 × 0.3W RGB SMD LEDs • 48 × 5W Cool White SMD LEDs
Beam Angle	• RGB: 121° • Cool White: 89°
Color Temperature	• Red: 620–630nm • Green: 515–525nm • Blue: 460–470nm • Cool White: 6500–7000K
LED Lifetime	Approx. 50,000 hours
Effects & Programs	• 40 RGB zones + 6 Cool White zones • 25 RGB macros + 9 Cool White macros • Smooth dimming & color mixing
Dimming	0–100% smooth dimming
Strobe Rate	0.35–25 Hz
Control Protocols	DMX512 (1990 standard), RDM
DMX Channels	6 / 9 / 13 / 18 / 36 / 41 / 126 / 141 CHs
Display	LCD display with 4-button touch menu
Power Supply	AC 100–240V, 50/60Hz (Auto Sensing)
Power Consumption	300W

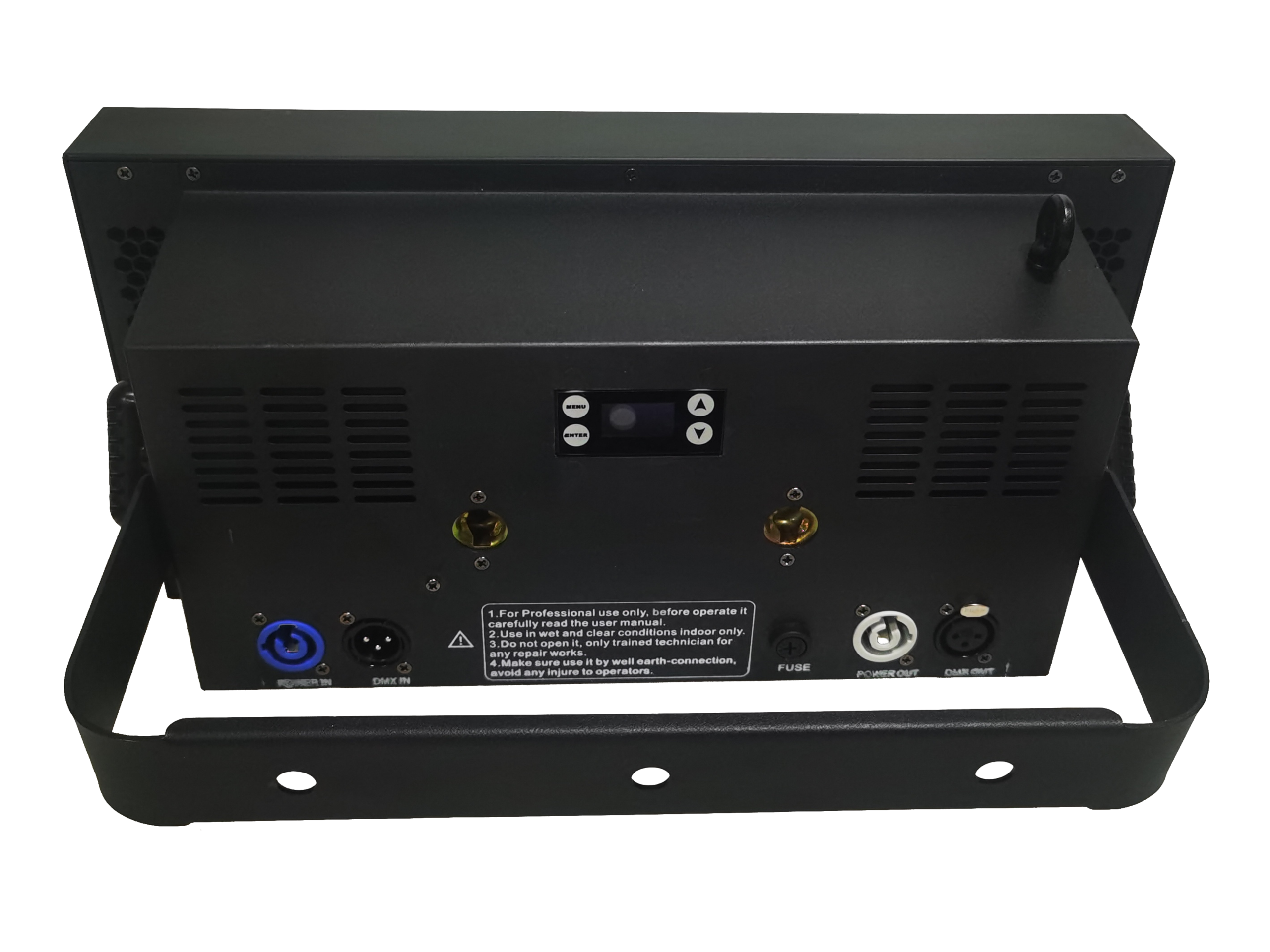

Connections	• DMX In/Out: 3-pin XLR • Power: Locking power in/out
IP Rating	IP20
Physical Size	• Length: 159.5 mm • Width: 405 mm • Height: 250 mm
Weight	13.2 kg
