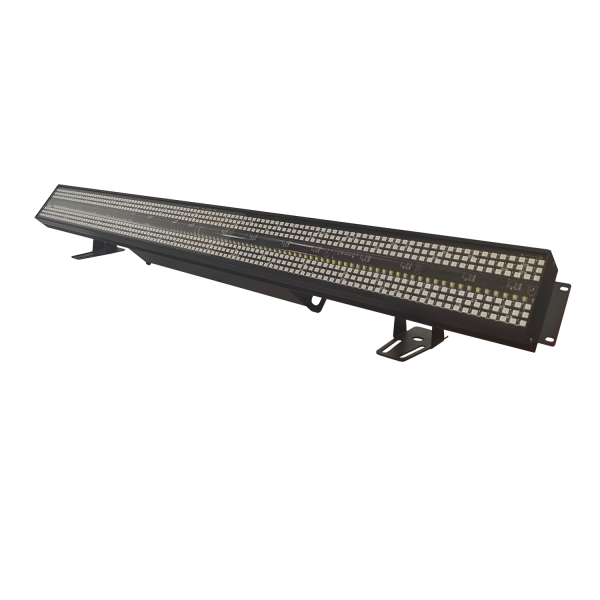

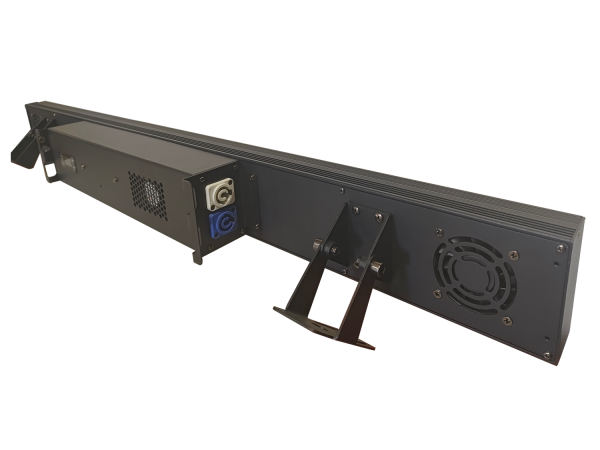

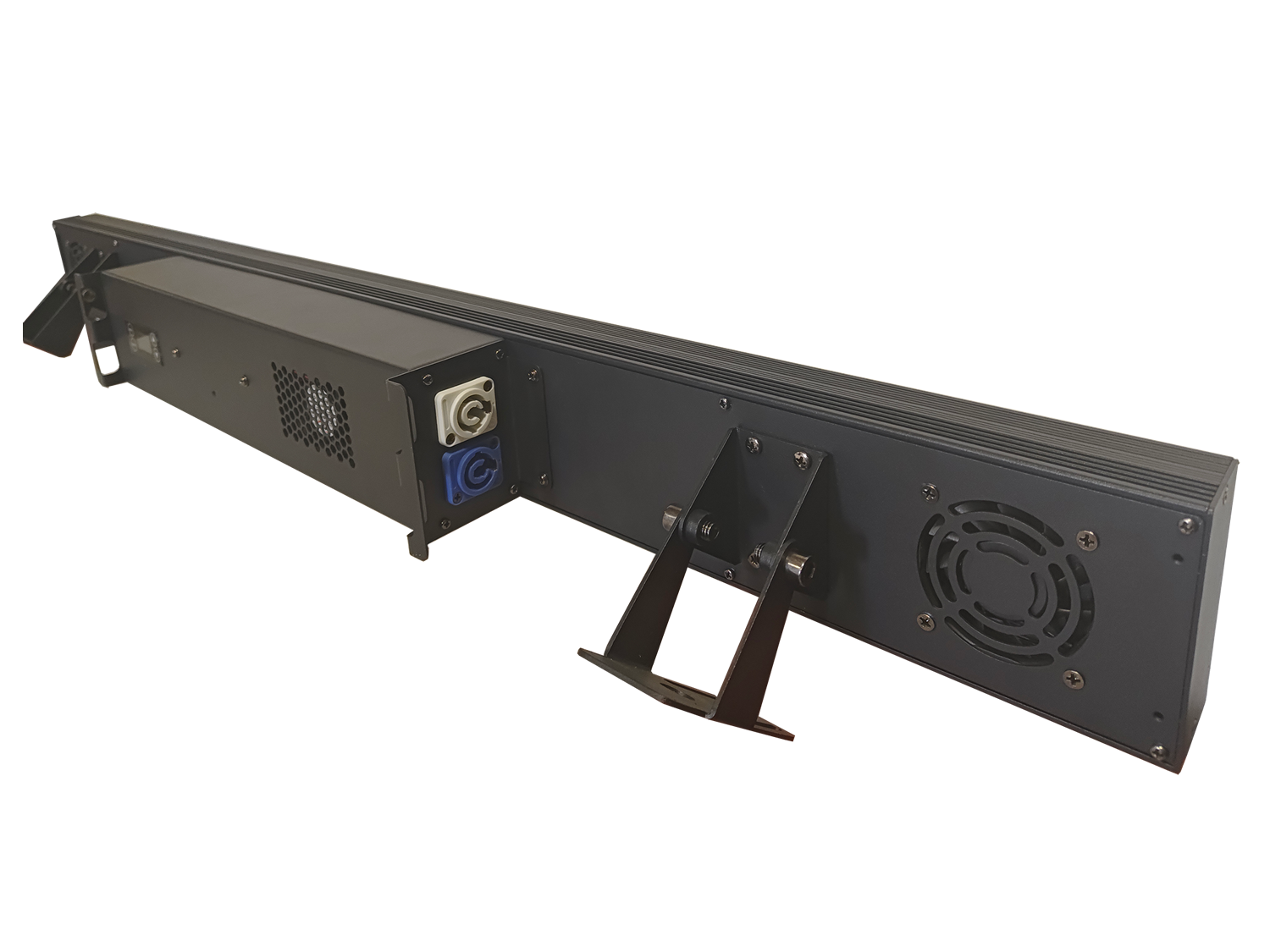

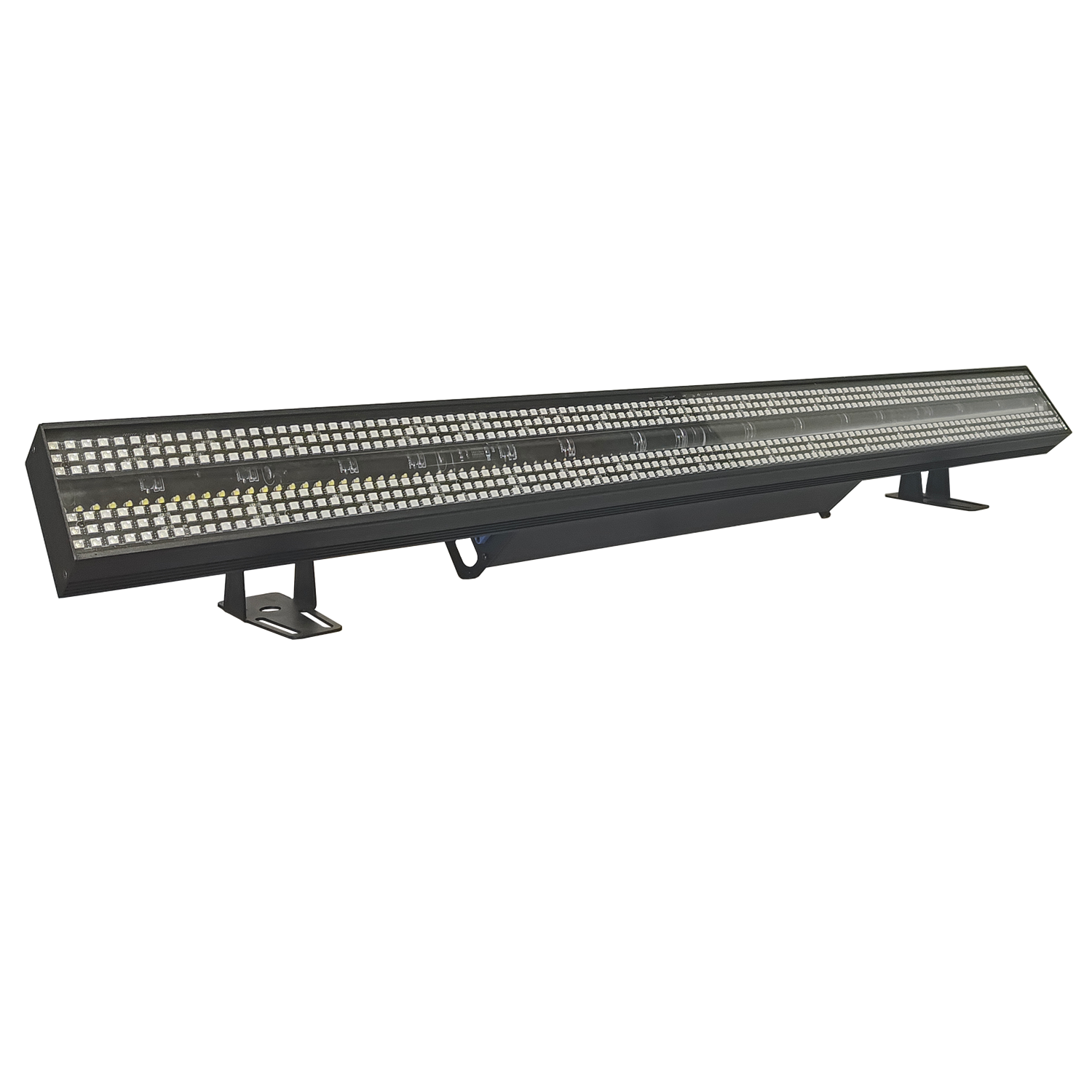

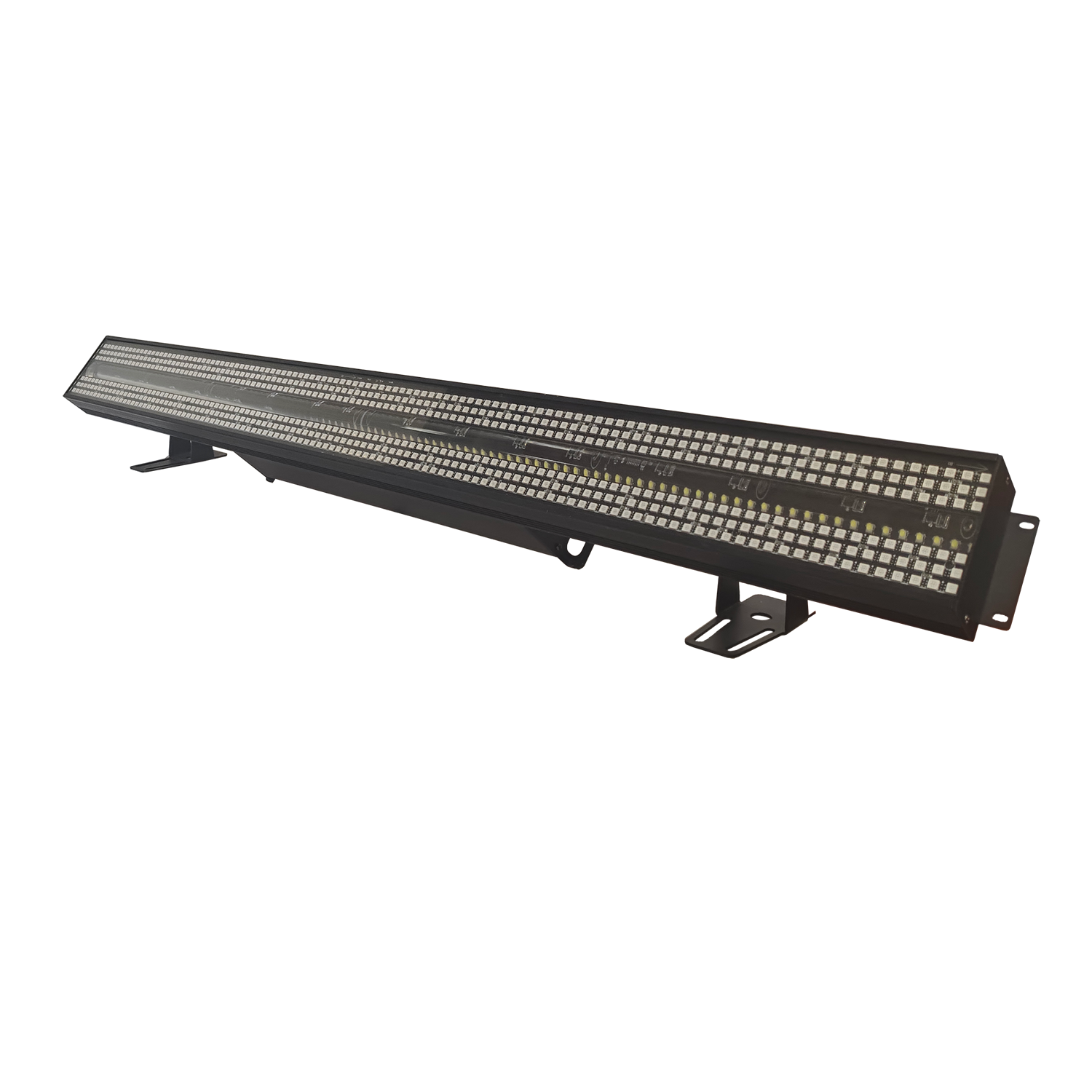

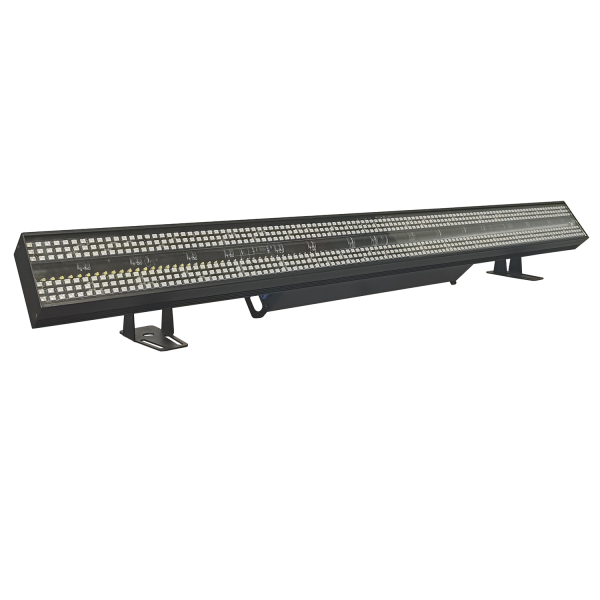

LED Strobe Light

Model PL-PL-ST2600
Device Type STROBE LIGHTS
SKU: PL-PL-ST2600 Category:

Overview

The PL-PL-ST2600 is a high-performance LED strobe light designed for professional stage and event applications. Equipped with 672 RGB SMD LEDs and 112 Cool White SMD LEDs, it delivers powerful strobe effects, smooth dimming, and excellent color mixing. With multiple DMX channel modes, built-in programs, and versatile control options, this fixture ensures maximum flexibility for live shows, concerts, and clubs. Its lightweight yet durable design makes it easy to integrate into any stage setup.

Key Features

  • Powerful light source: 672 RGB SMD LEDs + 112 Cool White SMD LEDs

  • Smooth 0–100% dimming and accurate color mixing

  • Flexible control with DMX512 and multiple channel modes (6–126 CH)

  • 25 built-in RGB macros and 9 Cool White macros for quick setup

  • LCD display with 4-button touch menu for easy operation

  • Long-lasting LEDs with 50,000 hrs lifetime

  • Lightweight design: only 4 kg

Category Specification
Light Source 672 × RGB SMD LEDs + 112 × Cool White SMD LEDs
Central Strip: 112 × Cool White SMD LEDs
Color Temperature: Red 620–630 nm, Green 515–525 nm, Blue 460–470 nm, Cool White 6500–7000 K
LED Lifetime: 50,000 hrs
Optical Effects Smooth dimming: 0–100%
Strobe rate: 0.35–25 Hz
LED Zones: 32 RGB + 16 Cool White
Built-in Programs: 25 RGB macros, 9 Cool White macros
Control & Programming Protocol: DMX512 (1990 standard)
DMX Channels: 6, 9, 13, 16, 18, 32, 38, 42, 64, 112, 126 CH
Display: LCD with 4-button touch menu
Electronics & Connections Power Supply: AC 100–240V, 50/60Hz (Auto Sensing)
Power Consumption: 340 W
DMX Data: 3-pin & 5-pin XLR (IN/OUT)
Power: Locking power In/Out
Physical Dimensions: 1000 × 104 × 111 mm
Weight: 4 kg
IP Rating: IP20
