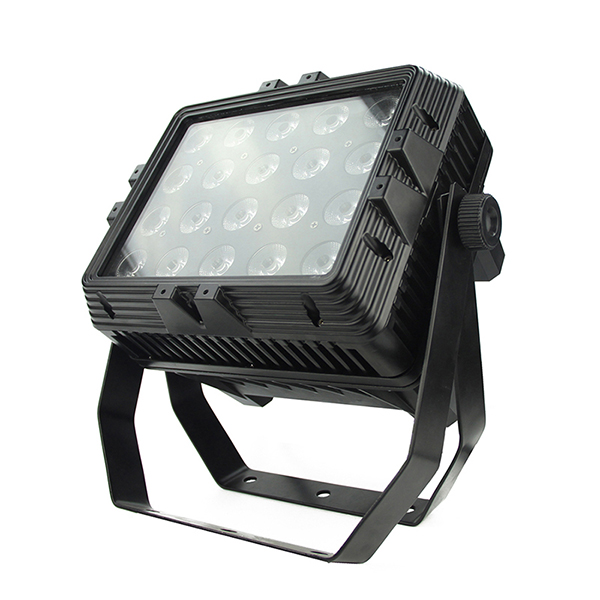

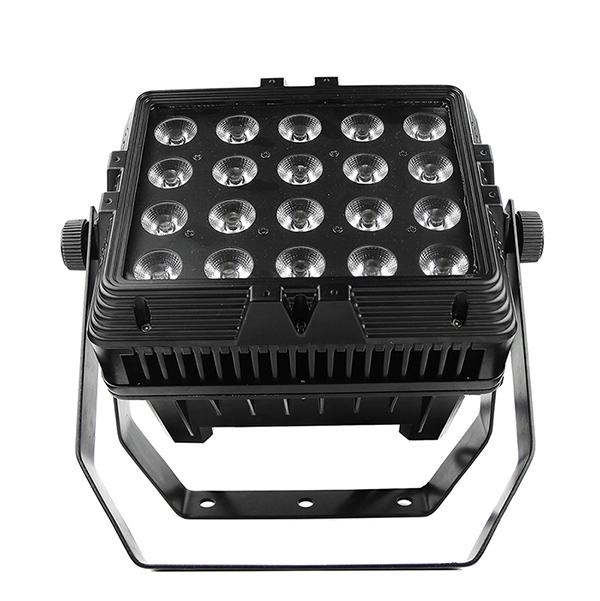

LED 300W STUDIO WASH LIGHT

Model PL-WC-20-5IN1
Device Type  WASH LIGHT



SKU: PL-WC-20-5IN1 Category: Tags: ,

 Overview

The LED 300W Studio Wash Light is a powerful and versatile fixture designed for professional stage, studio, and outdoor applications. Equipped with 20 high-performance 15W RGBWA 5-in-1 LEDs, it delivers vibrant colors, smooth mixing, and excellent brightness. With a durable IP65-rated housing, flicker-free operation, and flexible control options, this wash light ensures reliable performance in both live productions and permanent installations.


Key Product Features

  • High-Output Light Source: 20 × 15W RGBWA 5-in-1 LEDs with a long lifespan of 50,000 hours.

  • Smooth Dimming & Effects: 0–100% linear dimming, strobe effect up to 20 FPS, and flicker-free performance.

  • Beam Flexibility: Standard 25° beam angle, with optional 30° and 45° lenses.

  • Professional Control: Multiple DMX channel modes (3/4/5/7/8/10 CH), auto, and master/slave operation.

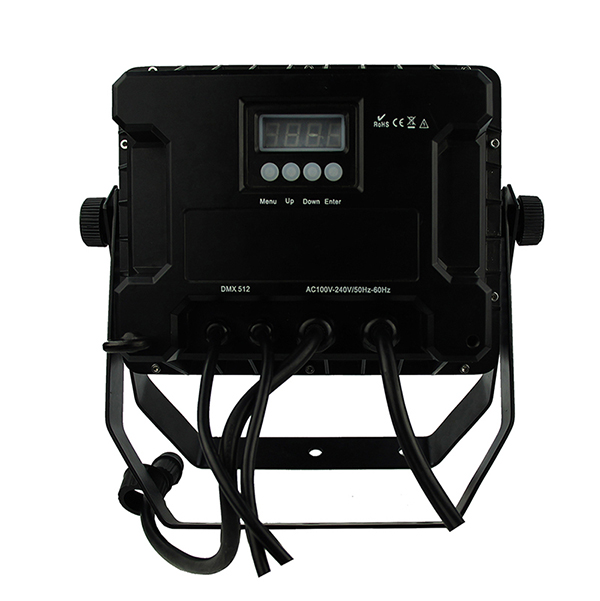

  • User-Friendly Interface: Built-in digital display for quick setup and adjustments.

  • Rugged & Reliable: IP65-rated housing suitable for outdoor environments.

  • Easy Integration: End-to-end connectivity with 3-pin and 5-pin DMX in/out.

  • Compact Design: Dimensions 32 × 22 × 29 cm, lightweight at 8.6 kg for easy installation.

Item Details
Power Supply AC 100–240V, 50/60Hz
Power Consumption 370W
Light Source 20 × 15W RGBWA 5-in-1 LEDs
LED Lifetime Approx. 50,000 hours
Dimming 0–100% linear, flicker-free
Strobe Rate 0–20 FPS
Beam Angle 25° (optional 30° or 45°)
Control Protocol DMX512, Automatic, Master/Slave
DMX Channels 3 / 4 / 5 / 7 / 8 / 10 channels
Display Integrated digital display
Connections 3-pin & 5-pin DMX in/out
Features End-to-end capability, outdoor use
IP Rating IP65
Dimensions 32 × 22 × 29 cm
Weight 8.6 kg
