Overview

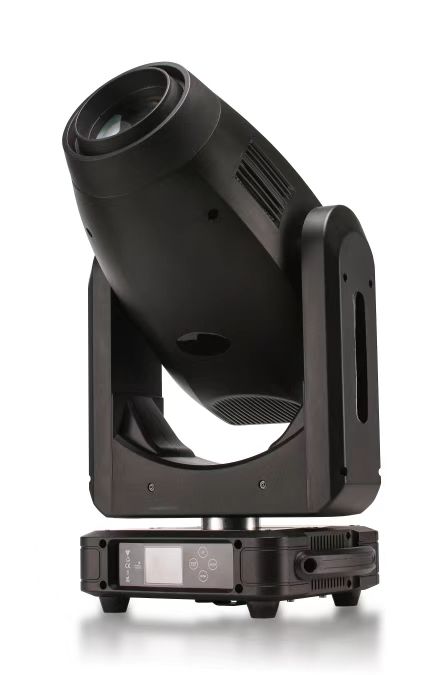

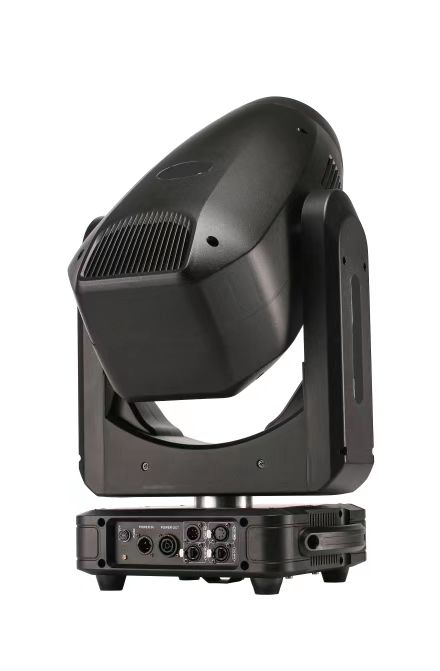

The PL-MN-600M-3IN1 – 600W 3-in-1 LED Moving Head Light is a professional-grade fixture designed for high-end stage and event applications. Equipped with a powerful 600W ultra-bright LED, it combines beam, spot, and wash effects in one unit. Featuring CMY + CTO color mixing, dual gobo wheels, prisms, and framing system, it delivers exceptional flexibility, precision, and stunning visual effects for concerts, theaters, and large-scale productions.
Key Features
-
High-output 600W LED with 50,000-hour lifetime
-
3-in-1 functionality: Beam, Spot, and Wash effects
-
Zoom range: 7° – 42° for versatile coverage
-
CMY + CTO system for smooth, precise color mixing (2700K–8000K)
-
Color wheel: 7 + 1 fixed colors
-
Rotating gobo wheel: 7 + 1 gobos
-
Static gobo wheel: 6 + 1 gobos
-
5-facet rotating prism for dynamic effects
-
Advanced framing system for precise shaping
-
Smooth 0–100% linear dimming with 16-bit resolution
-
High-speed strobe: 1–25 fps (slow to fast)
-
Digital display with end-to-end capability
-
Multiple DMX channel modes: 34 / 54 CH
-
Control modes: DMX512, Auto-run, Master/Slave
-
Connectivity: 3-pin or 5-pin DMX In/Out
-
Professional design with robust housing
