Overview

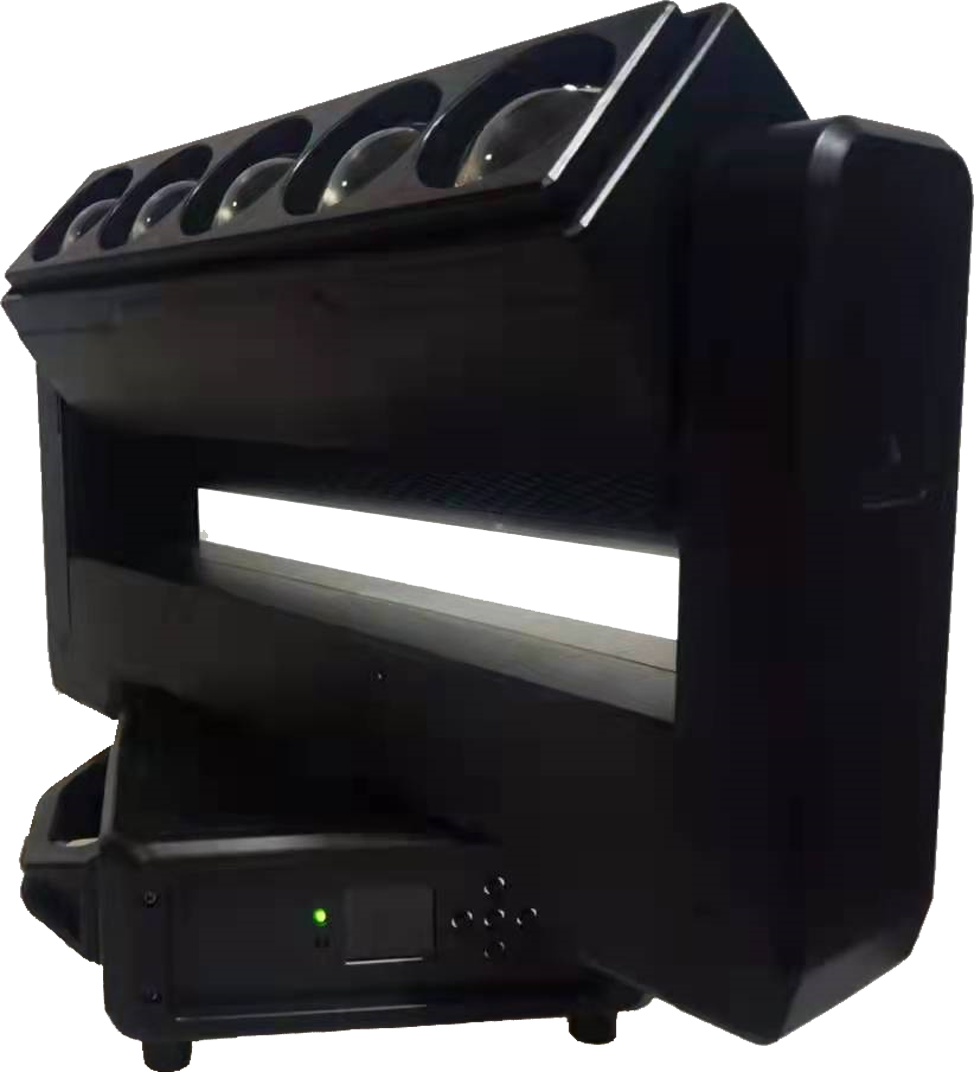

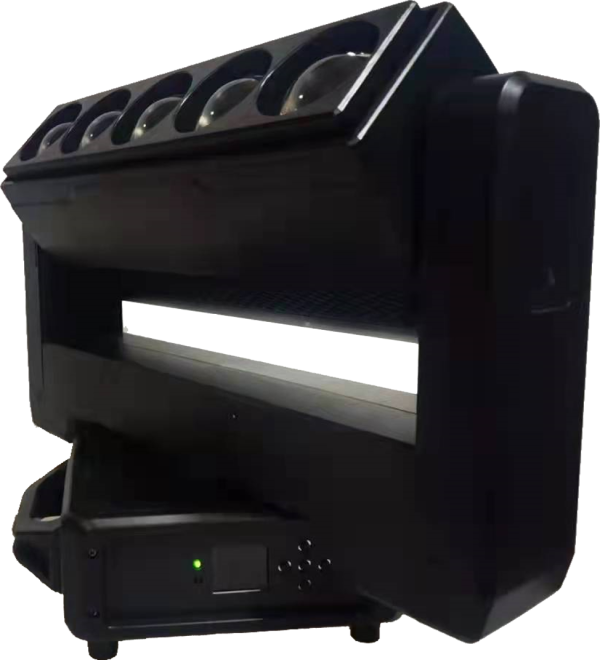

The PL-EL56 – 5×60W Double Head LED Moving Head Bar is a high-performance fixture that combines beam, wash, and strobe effects in one powerful unit. Featuring 5 × 60W RGBW 4-in-1 LEDs, plus additional 42 × 3W White and 84 × 0.3W RGBW lamps, it offers pixel-mapped effects, smooth zoom from 3.8° to 50°, and infinite pan/tilt movement. Perfect for concerts, clubs, theaters, and stage productions that demand dynamic visual impact.
Key Features
-
5 × 60W RGBW 4-in-1 LEDs + 42 × 3W White + 84 × 0.3W RGBW lamps
-
Long lifetime: up to 50,000 hours
-
Zoom range: 3.8° – 50° for beam and wash flexibility
-
Infinite pan & tilt movement (360°) with 8/16-bit resolution
-
14-segment pixel control (9 LEDs per segment) with zoom function
-
Beam, wash, and strobe effects combined in one fixture
-
High-speed strobe: 1–13 fps (adjustable)
-
Smooth 0–100% linear dimming, 16-bit resolution
-
Flicker-free, suitable for camera and broadcast use
-
Digital display and end-to-end connectivity
-
Multiple DMX channel modes: 24 / 29 / 105 CH
-
Control modes: DMX512, Auto-run, Master/Slave
-
Connectivity: 3-pin or 5-pin DMX In/Out
-
Indoor use with IP20 rating
