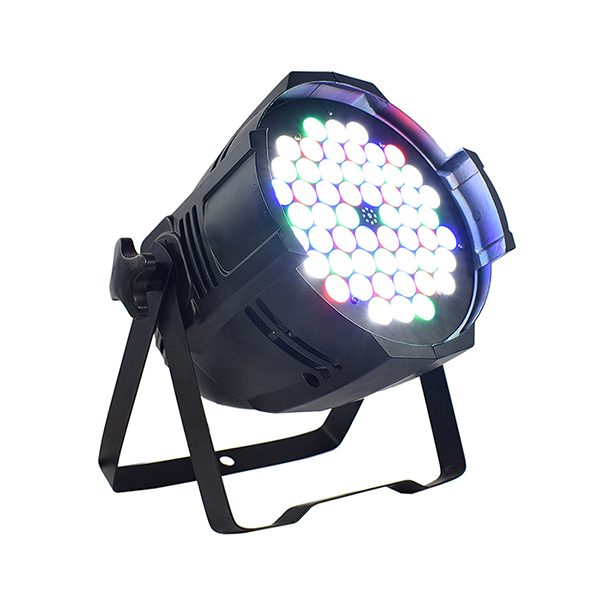

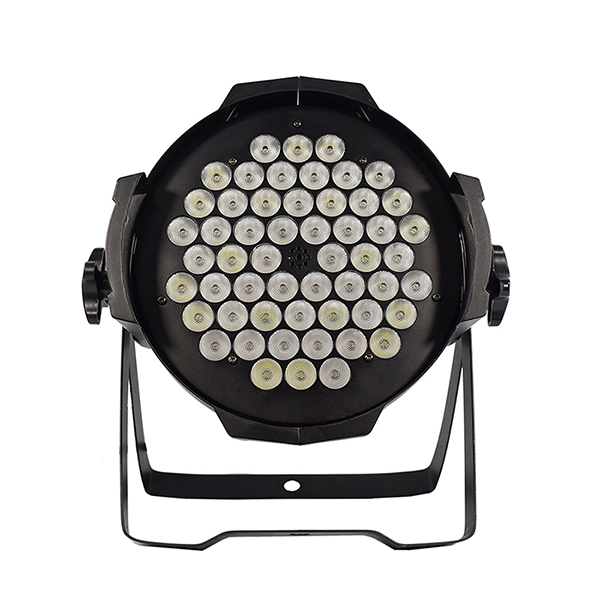

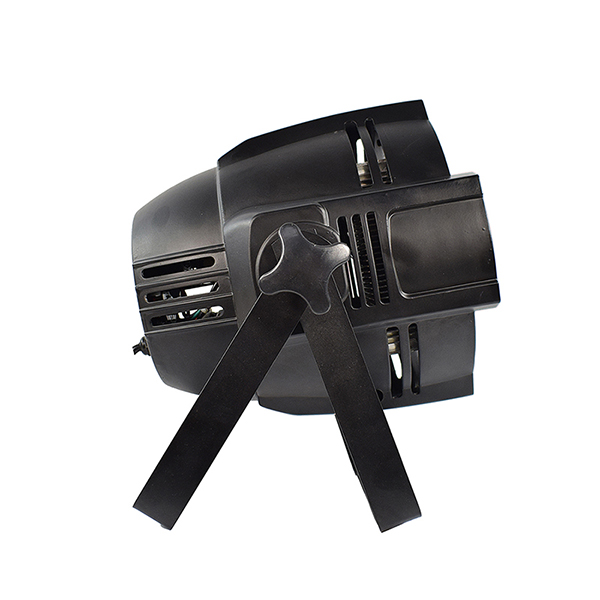

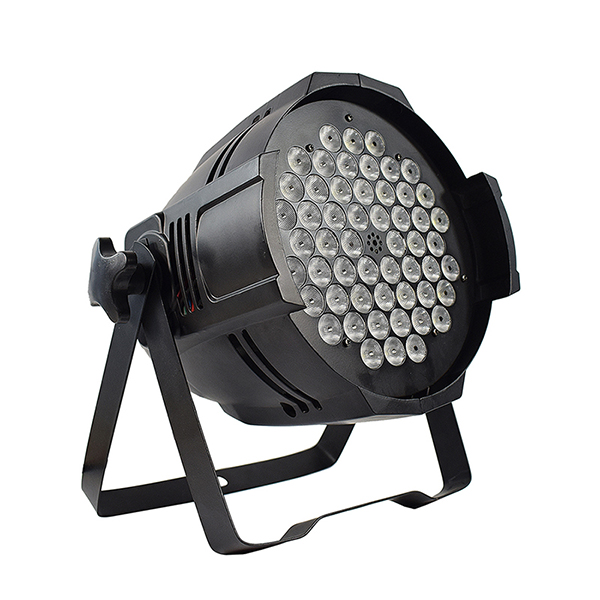

54X4IN1 LED PAR LIGHT

Model PL-PD-54QUAD
Device Type LED PAR LIGHT
SKU: PL-PD-54QUAD Category: Tag:

Overview

The PL-PD-54QUAD is a high-performance 54×4-in-1 LED PAR Light, designed for professional stage, theater, club, and event applications. With powerful 4-in-1 LEDs, flexible control options, and robust build, it delivers vibrant colors, smooth dimming, and reliable operation.


Key Features

  • 54pcs 4-in-1 high-brightness LEDs

  • Long lamp lifetime up to 50,000 hours

  • Smooth 0–100% linear dimming, flicker-free performance

  • Strobe effect adjustable from 0–20 fps

  • Multiple beam angles available: 25° (standard), optional 30° or 45°

  • Digital display with easy control interface

  • End-to-end connection capability

  • Supports DMX512, auto, and master/slave modes

  • Compact and lightweight design for easy installation

Item Specification
Model PL-PD-54QUAD
Light Source 54 × 4-in-1 LEDs
LED Lifetime 50,000 hours
Power Supply AC100–240V, 50/60Hz
Power Consumption 220W
Beam Angle 25° (optional 30°, 45°)
Control Protocol DMX512
Control Modes DMX512 / Auto / Master-Slave
DMX Channels 3 / 4 / 5 / 6 / 8 CH
Effects 0–100% linear dimming, flicker-free, strobe 0–20 fps
Display Digital display
Connectivity 3-pin or 5-pin DMX In/Out
Protection Rating IP20 (indoor use)
Size 30 × 22 × 32 cm
Weight 3 kg
