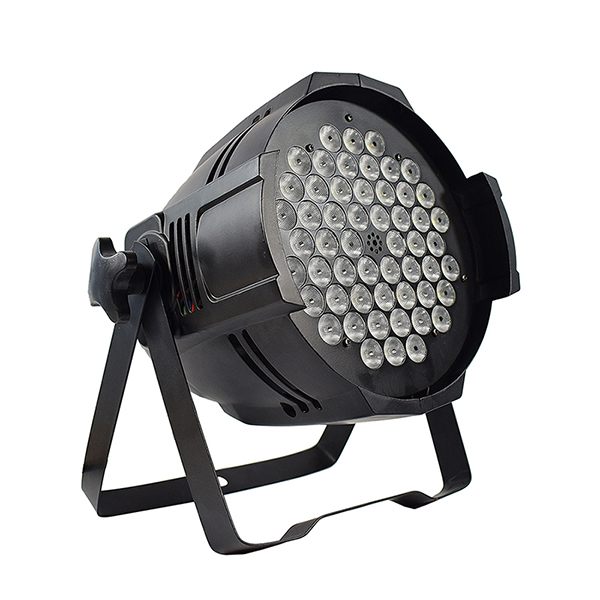

54X3W UV LED PAR LIGHT

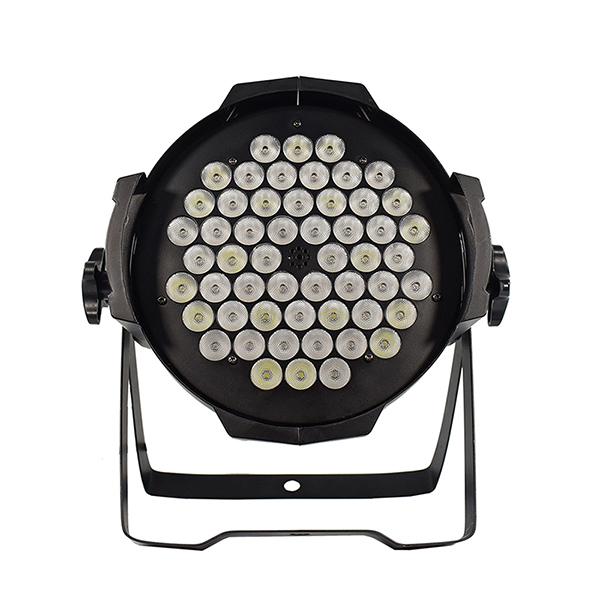

54X3W UV LED PAR LIGHT - Image 2

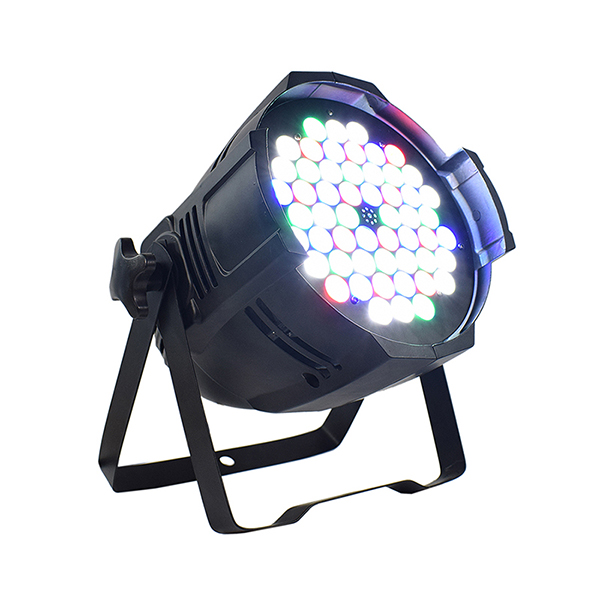

54X3W UV LED PAR LIGHT - Image 3

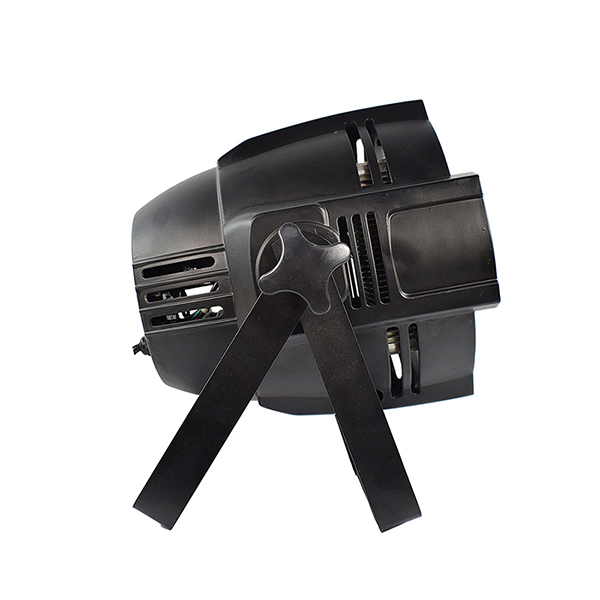

54X3W UV LED PAR LIGHT - Image 4

54X3W UV LED PAR LIGHT

Model PL-PD-54UV
Device Type LED PAR light
SKU: PL-PD-54UV Category: Tags: ,

Overview

The PL-PD-54UV is a professional UV LED PAR light designed for stage, club, theater, and special effects applications. Equipped with 54 × 3W ultraviolet LEDs, it produces powerful UV light output with smooth dimming, strobe effects, and flicker-free operation. With DMX512 control, standalone programs, and a user-friendly digital display, this fixture is versatile, compact, and ideal for both fixed installations and touring setups.

Key Features

  • Light Source: 54 × 3W high-power UV LEDs

  • LED Lifetime: Up to 50,000 hours

  • Beam Angle: 25° (optional 30° / 45°)

  • Smooth Dimming: 0–100% linear dimming

  • Strobe Effect: 0–20 fps

  • Flicker-Free: Suitable for broadcast and camera use

  • Control Modes: DMX512, Automatic, Master/Slave

  • DMX Channels: 2 channels

  • User-Friendly: Digital display, end-to-end linking capability

  • Compact & Durable: Lightweight housing, IP20 rated for indoor use

Item Specification
Model PL-PD-54UV
Light Source 54 × 3W UV LEDs
LED Lifetime Approx. 50,000 hours
Beam Angle 25° (optional 30° / 45°)
Dimming 0–100% linear dimming
Strobe Effect 0–20 fps
Control Protocol DMX512
Control Modes DMX512, Auto, Master/Slave
DMX Channels 2 channels
Display Digital display
Connectivity 3-pin & 5-pin XLR DMX In/Out
Power Supply AC100–240V, 50/60Hz
Power Consumption 180W
Housing Durable construction, black finish
Protection Rating IP20 (indoor use)
Dimensions (W×D×H) 300 × 220 × 320 mm
Weight 3 kg
