Overview

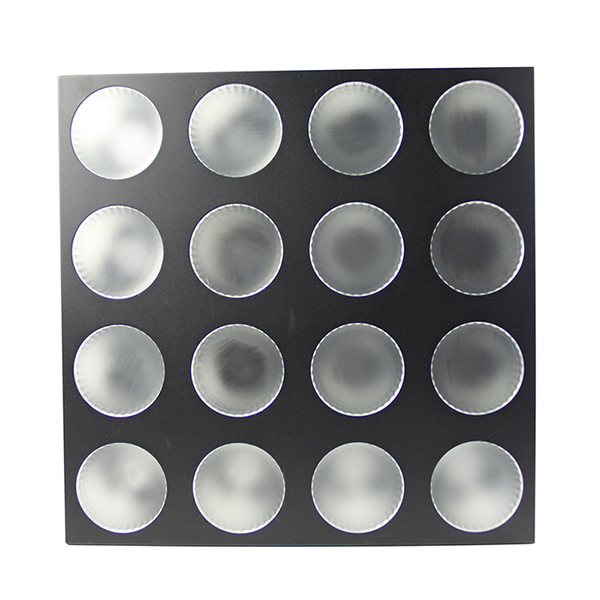

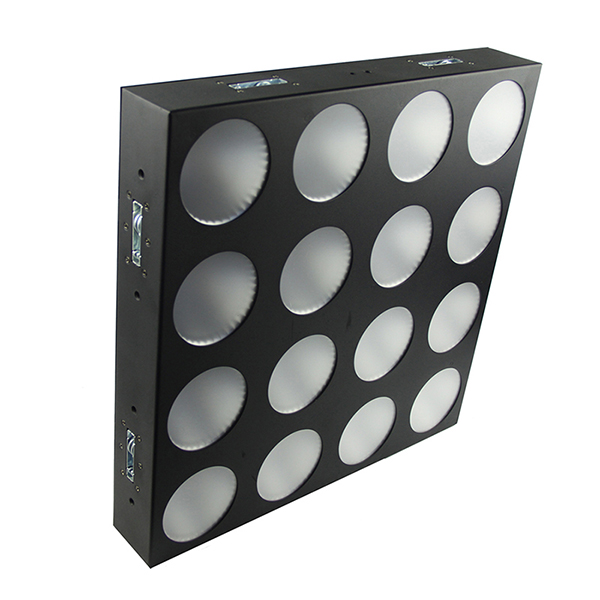

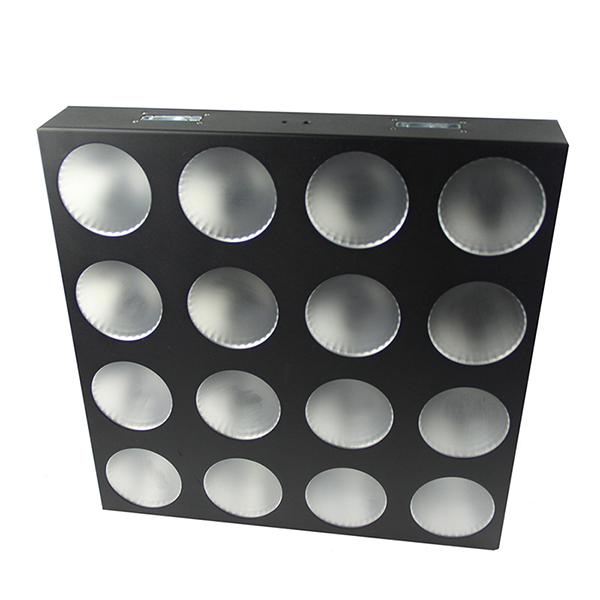

The PL-WM-16TRI 4×4 LED Matrix Light is a powerful stage lighting solution designed to deliver high-impact pixel effects and uniform washes. Equipped with 16 high-output RGB LEDs and versatile DMX control options, it is ideal for concerts, clubs, theaters, and professional event productions requiring dynamic visual performance.
Key Features
-
Light Source: 16 pcs 30W RGB 3-in-1 LEDs with a 50,000-hour lifespan
-
Pixel Mapping: Advanced pixel control for creative effects
-
Smooth Dimming: 0–100% linear dimmer, flicker-free operation for camera use
-
Beam Angle: Standard 25° (optional 30°/45°) for flexible coverage
-
Control Options: DMX512, automatic programs, master/slave mode
-
DMX Flexibility: Multiple channel modes (1 / 3 / 4 / 6 / 16 / 18 / 48 / 49 / 50 / 51 CH)
-

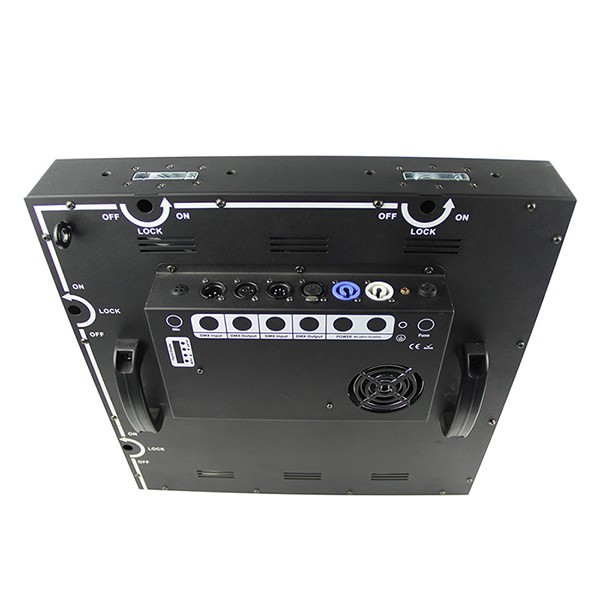

Connectivity: 3-pin or 5-pin DMX In/Out for easy integration
-
Design: End-to-end capability with a digital display for intuitive setup
-
Protection: IP20 rating for indoor applications.
