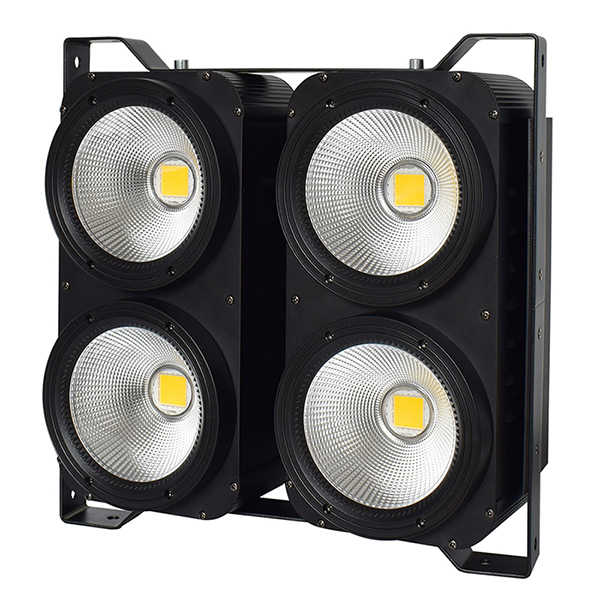

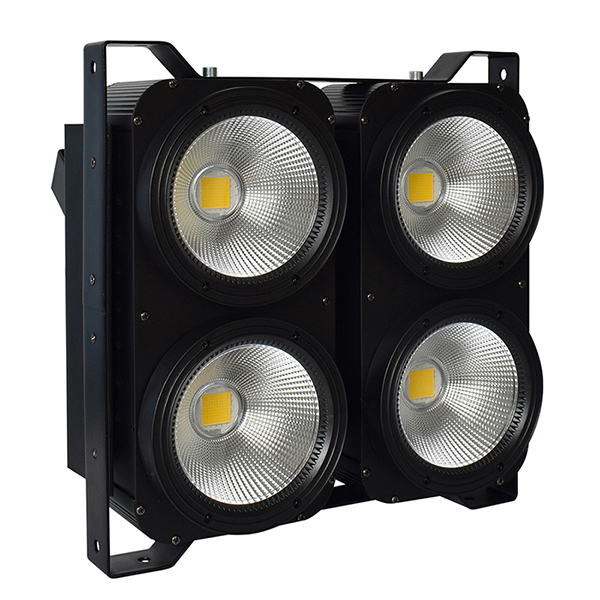

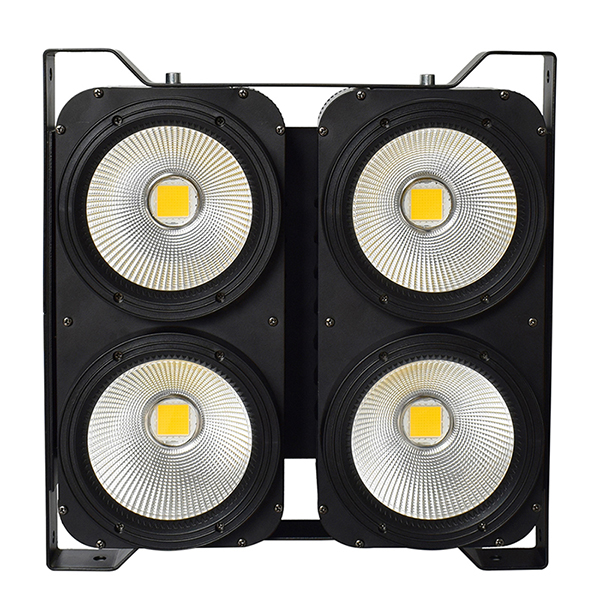

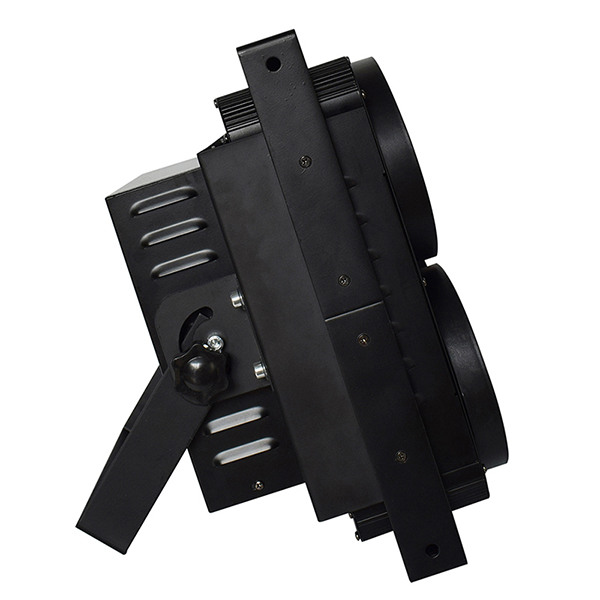

4X100W LED BLINDER LIGHT

Model PL-W-48QUAD
Device Type LED BLINDER LIGHT
SKU: PL-WM-4COB Category: Tags: ,

Overview

The 4X100W LED Blinder Light (PL-WM-4COB) is a high-output stage lighting fixture designed for concerts, theaters, clubs, and large-scale events. Featuring 4x 100W COB LEDs in warm or cool white options, it delivers powerful, uniform illumination with advanced control flexibility. Its robust design, digital display, and pixel mapping capabilities make it an excellent choice for professional lighting applications.


Key Features

  • Light Source: 4 × 100W COB LEDs (Warm White / Cool White)

  • Brightness & Quality: High-output illumination with long 50,000-hour lifespan

  • Control Options: DMX512, Auto, and Master/Slave modes

  • Pixel Mapping: Supports creative stage and architectural effects

  • Dimming & Effects: Smooth 0–100% linear dimming, flicker-free performance

  • Connectivity: 3-pin & 5-pin DMX In/Out for versatile integration

  • Protection: IP20-rated for indoor use

  • User-Friendly: Digital display with intuitive interface

Specification Details
Power Supply AC100–240V, 50/60Hz
Power Consumption 450W
Light Source 4 × 100W COB LEDs (Warm White / Cool White)
Average Lamp Life 50,000 hours
Features End-to-end capability, Digital display, Pixel mapping, Flicker-free
Control Mode DMX512 / Automatic / Master-Slave
DMX Channels 1 / 4 / 8 CH
Angle Fixed (optimized beam for blinder effect)
IP Rating IP20 (indoor use)
Connectivity 3-pin or 5-pin DMX In/Out
Size 50 × 41 × 12 cm
Weight 8.5 kg
