Overview

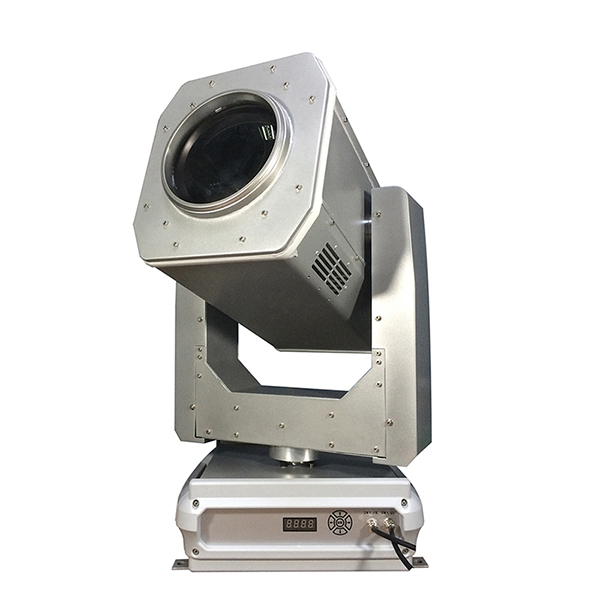

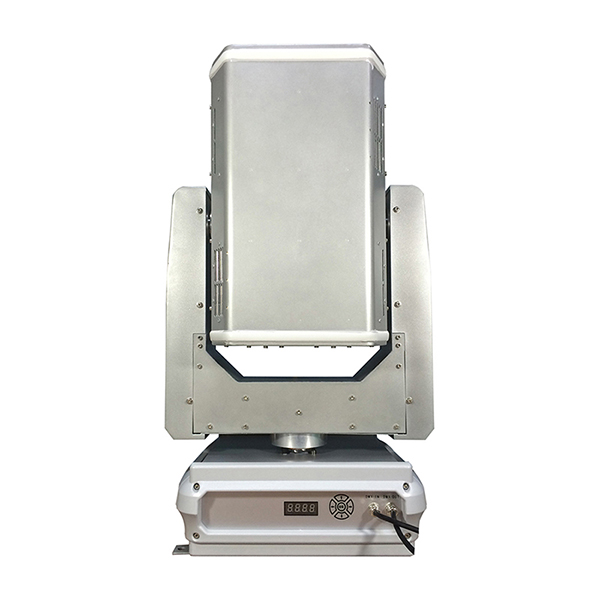

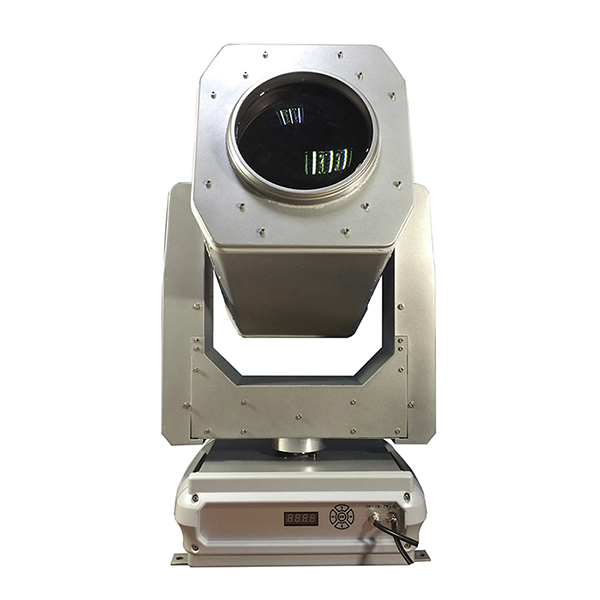

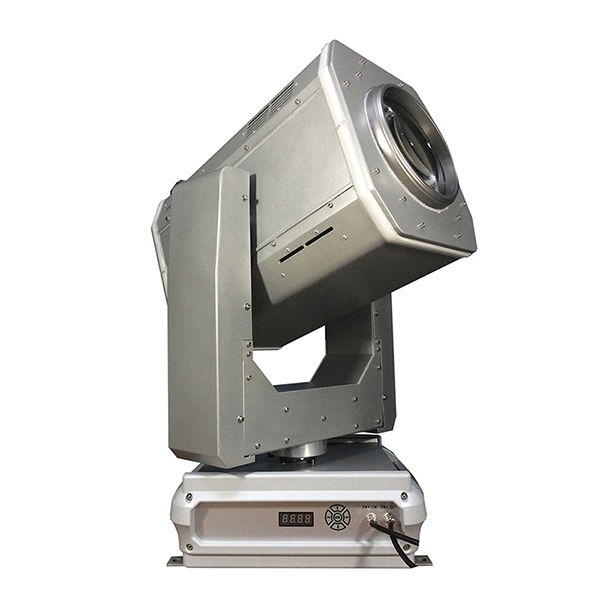

The PL-MW-440B 20R Beam Light is a high-output moving head fixture designed for professional stage, event, and outdoor applications. Equipped with a powerful 440W OSRAM lamp, this fixture delivers an ultra-sharp beam with a narrow angle of 2.8°–4°. With IP65 protection, versatile effects, and precise movement control, it ensures outstanding performance in demanding environments such as concerts, large venues, and outdoor productions.
Key Features
-
Powerful Light Source: OSRAM 440W lamp with 7,800K color temperature for bright and consistent output.
-
Sharp Beam Projection: Beam angle 2.8°–4° with electronic focus for crystal-clear effects.
-
Dynamic Effects:
-
Color wheel with 11 colors + open.
-
Static gobo wheel with 17 gobos + open.
-
8-facet rotating prism for creative aerial effects.
-
Frost filter for soft wash effects.
-
Variable speed strobe and macro color effects.
-
-
Precision Control: 16-bit pan (540°) and tilt (250°) movement with smooth and accurate positioning.
-
Flexible Operation: DMX512, auto, and master/slave modes with 16 DMX channels.
-
User-Friendly Interface: LCD display with 3-pin or 5-pin DMX in/out connectors.
-
Rugged Design: IP65-rated housing for reliable outdoor performance.
