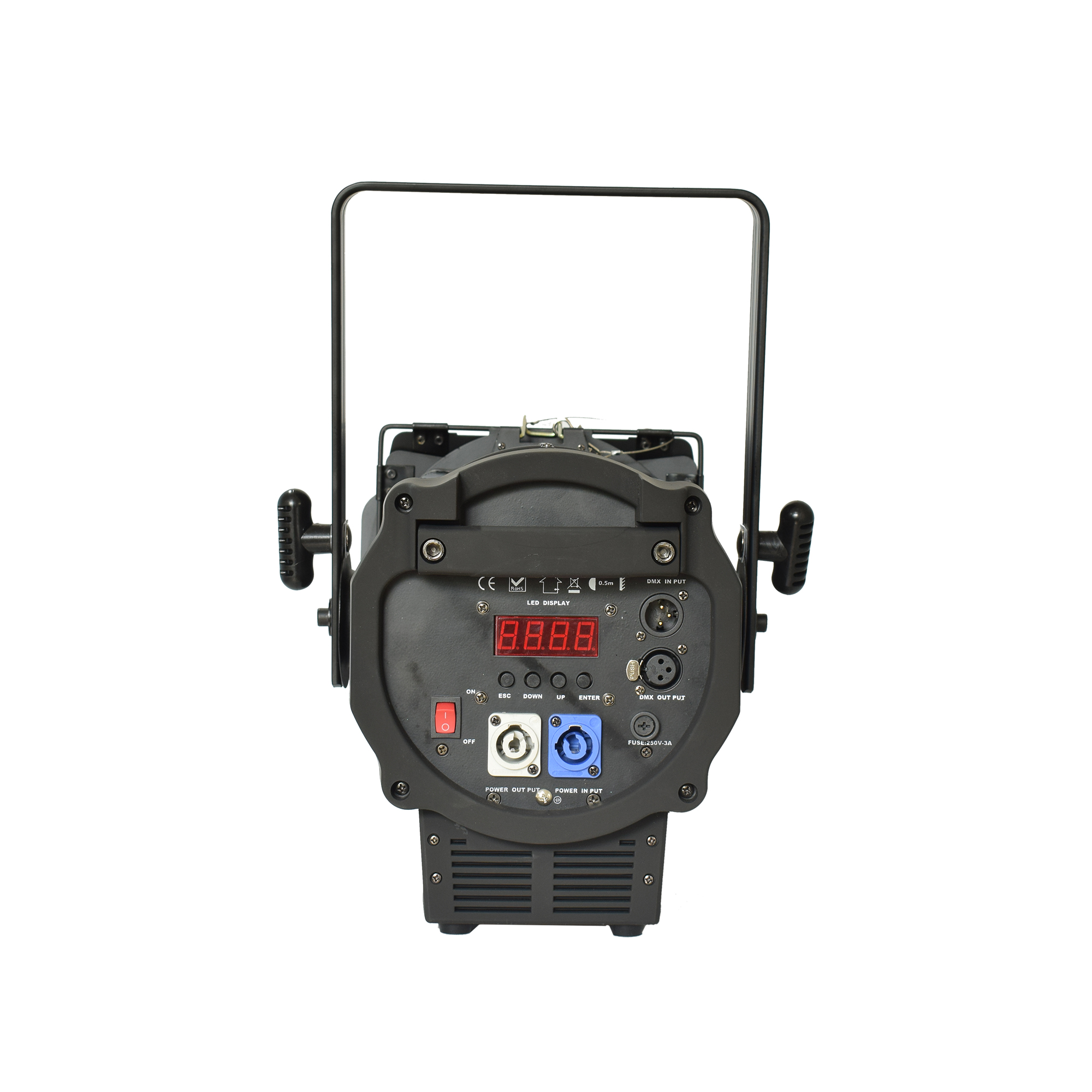

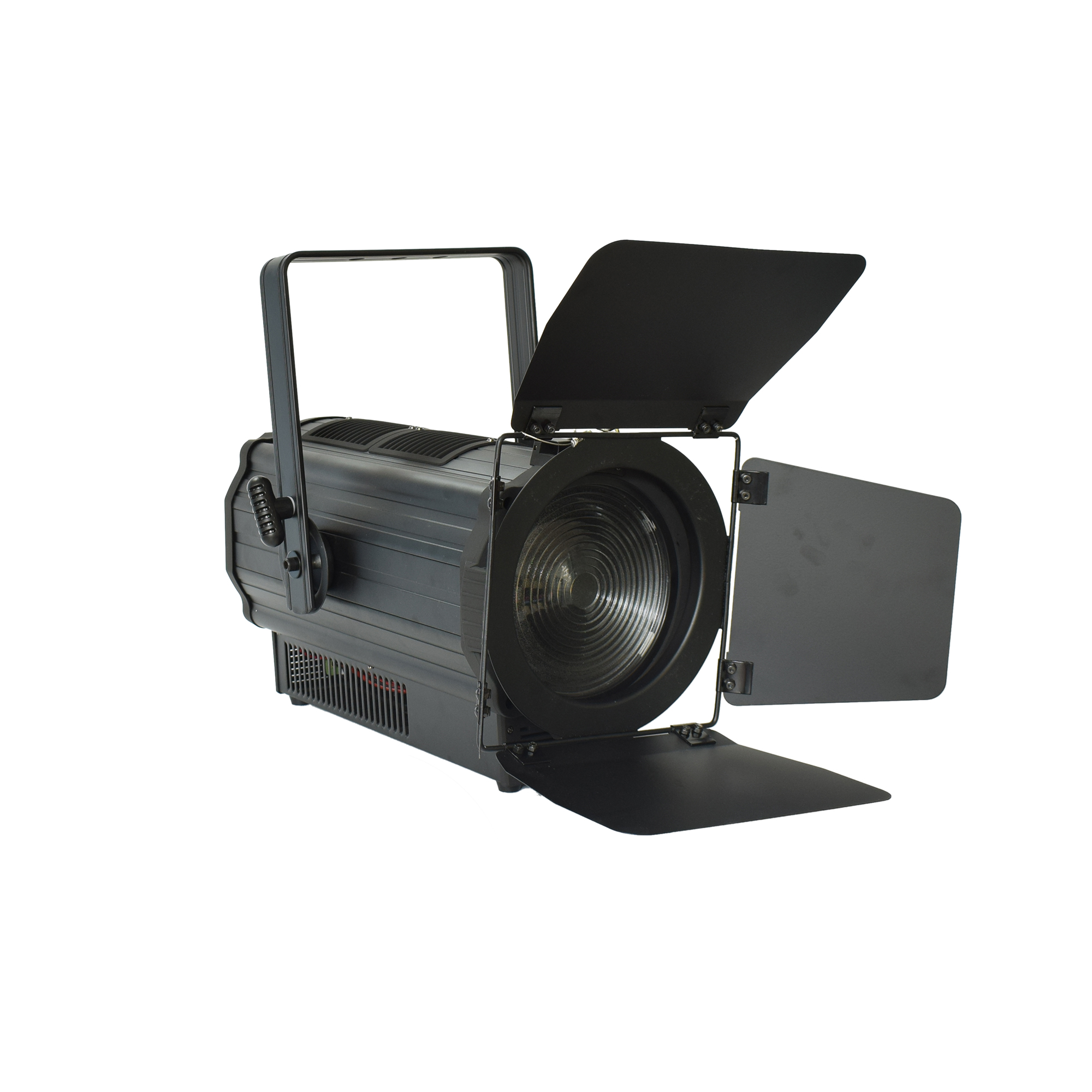

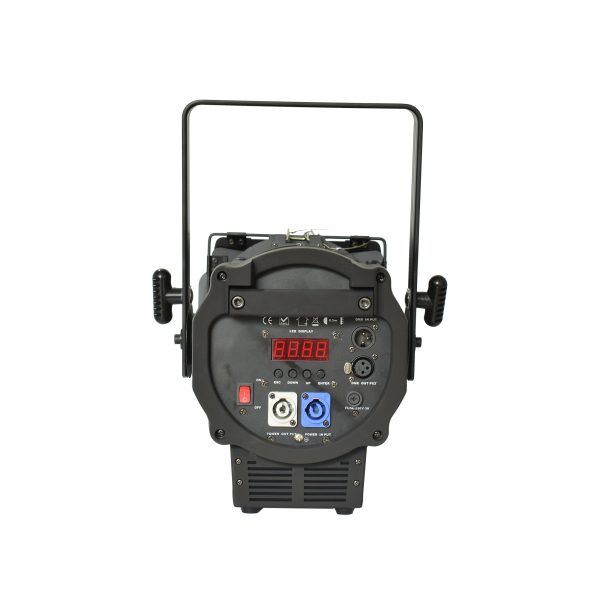

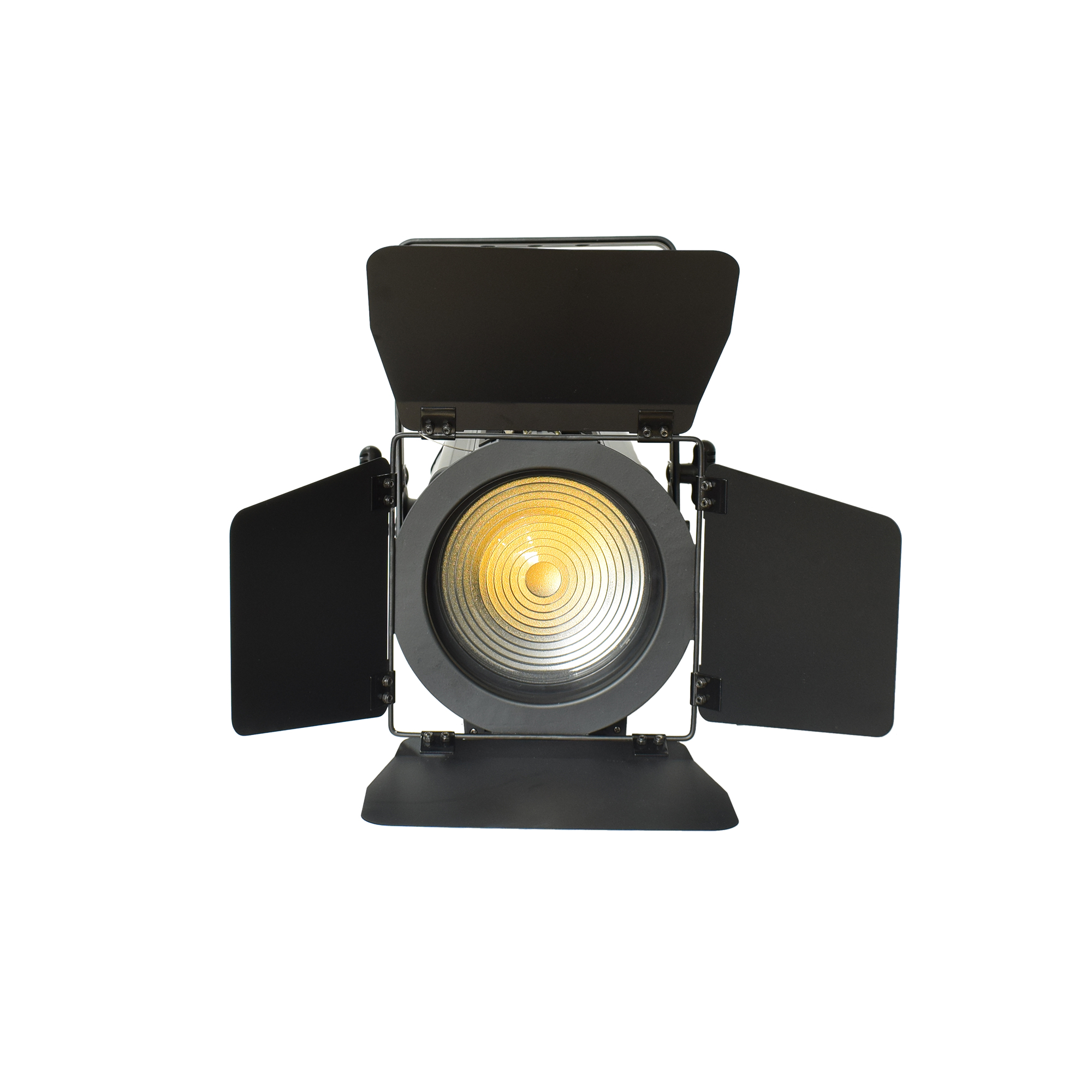

200W COB LED FRESNEL SPOT LIGHT

Model PL-200SP-Z
Device Type COB LED FRESNEL SPOT LIGHT
Brand Prolite
Origin Hong Kong

The PL-200SP-Z is a professional 200W COB LED Fresnel Spot Light designed for theaters, studios, broadcast, and stage applications where high-quality, soft-edged illumination is required. Offering exceptional brightness, long lamp life, and excellent color rendering, this fixture combines energy efficiency with powerful output. With DMX control, flicker-free performance, manual zoom, and precision barn doors, the PL-200SP-Z provides versatile lighting control for both live and recorded productions.


Key Features

  • High-Performance Light Source – 200W COB LED with optional configurations (60W, 100W, 200W LED or 2000W halogen).

  • Long Lamp Lifetime – Up to 50,000 hours for reduced maintenance.

  • Excellent Color Quality – CRI ≥90 at both 3200K and 5600K for accurate color reproduction.

  • Smooth Dimming – 0–100% linear dimming, flicker-free operation.

  • Flexible Effects – Strobe function 0–20 FPS, manual zoom, and 4-rotating barn doors.

  • Professional Control – DMX512, automatic, and master/slave operation with 2 DMX channels.

  • User-Friendly Interface – Digital display with intuitive settings.

  • Durable & Reliable – IP20 indoor rating, designed for professional environments.

Specification Details
Model PL-200SP-Z
Power Supply AC 90–260V, 50/60Hz
Power Consumption 200W
Light Source 200W COB LED (Optional: 60W, 100W, 200W LED, or 2000W Halogen)
Lamp Lifetime Up to 50,000 hours
Color Temperature 3200K / 5600K
CRI ≥90 (3200K / 5600K)
Dimming 0–100% linear, flicker-free
Strobe 0–20 FPS
Zoom & Optics Manual zoom, 4 rotating barn doors
Control Modes DMX512 / Automatic / Master-Slave
DMX Channels 2
Connections 3-pin or 5-pin DMX In/Out
IP Rating IP20 (Indoor use)
Dimensions (L×W×H) 48.6 × 27.6 × 25 cm
Weight 8.5 kg
