Overview

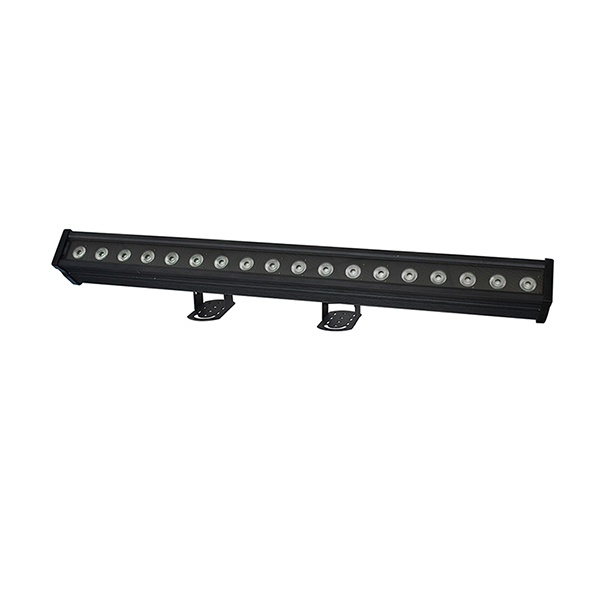

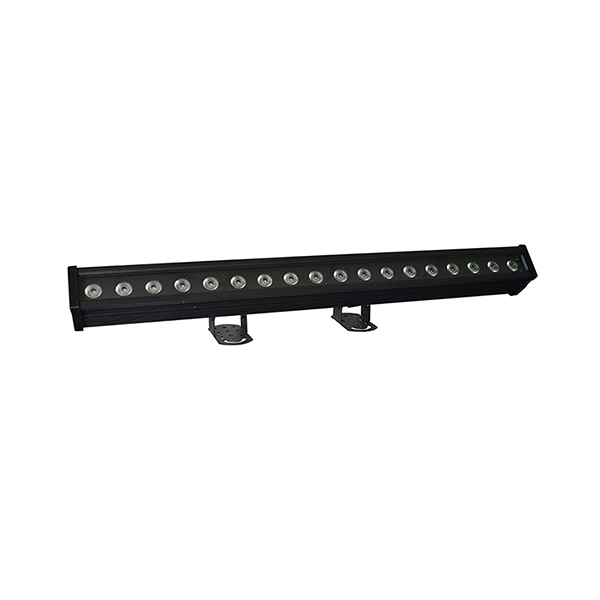

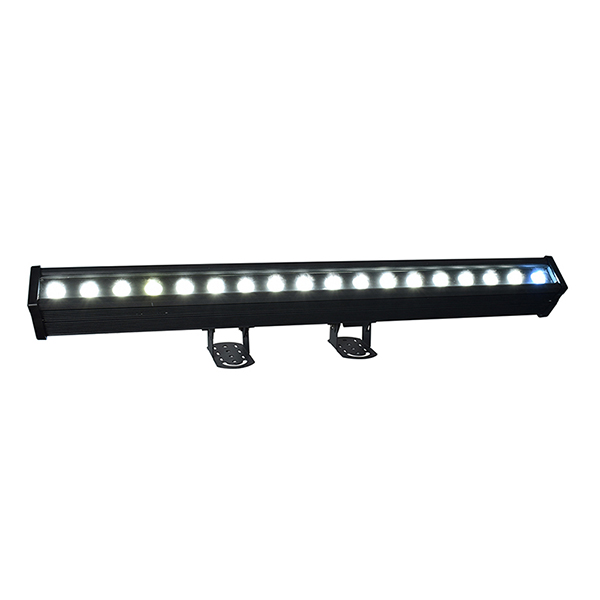

The PL-WW-18QUAD is a high-performance outdoor LED wall washer designed for professional architectural and stage lighting applications. Equipped with 18 pieces of 12W 4-in-1 LEDs, it delivers vibrant color mixing, smooth dimming, and reliable operation. With IP65 protection, versatile beam angle options, and advanced control modes, this fixture is ideal for both indoor and outdoor installations, offering flexibility, durability, and outstanding visual impact.
Key Features
-
Powerful Light Source: 18 × 12W 4-in-1 high-brightness LEDs with 50,000 hours lifespan.
-
Flexible Control: Supports DMX512, auto-run, and master/slave operation with multiple DMX channel modes.
-
Pixel Mapping (Optional): Advanced pixel-by-pixel control for creative effects.
-
Smooth Dimming & Strobe: 0–100% linear dimming and strobe rate up to 20fps.
-
Optical Options: Standard 25° beam angle, optional 30° or 45° lenses.
-
Outdoor Ready: IP65 rating for reliable outdoor use.
-
User-Friendly Interface: Digital display with easy menu navigation.
-
Connectivity: 3-pin or 5-pin DMX in/out.
