Overview

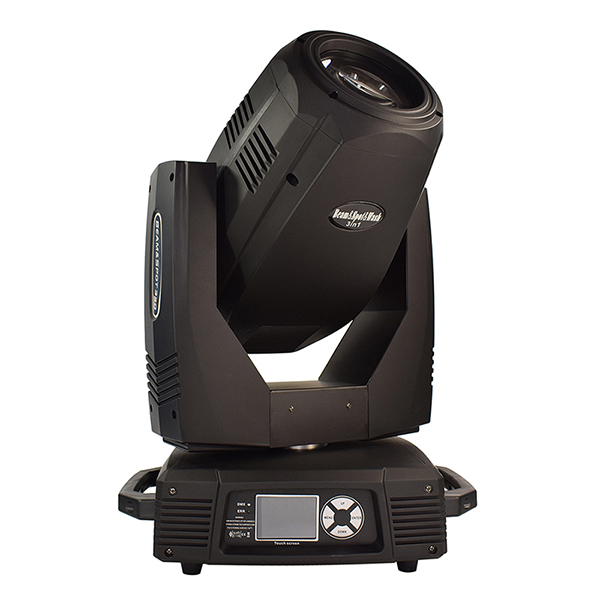

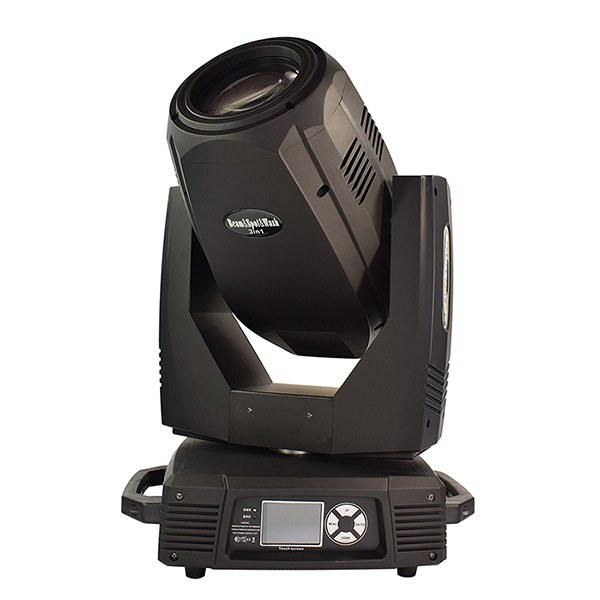

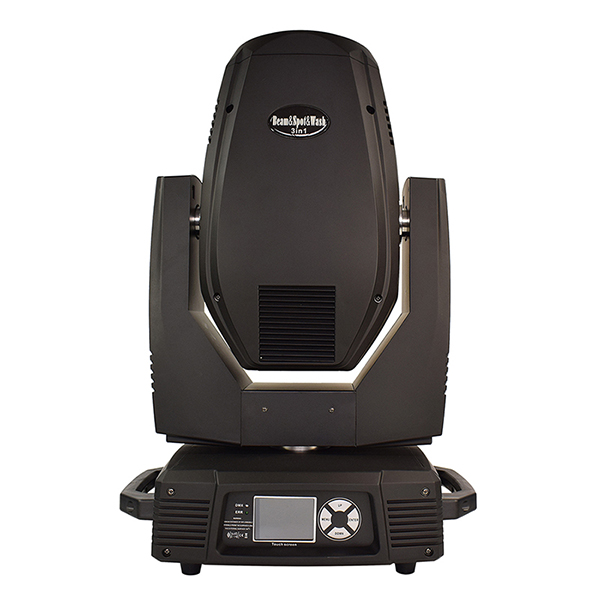

The PL-M-350B is a professional 3-in-1 moving head fixture that seamlessly integrates Beam, Spot, and Wash functions in a compact and powerful design. Powered by the Philips Platinum 17R 350W lamp, it delivers brilliant output, sharp beams, and vibrant colors for concerts, stages, theaters, and large-scale events. With versatile zoom, precision optics, and multiple effects, the PL-M-350B offers lighting designers unmatched flexibility and creativity.
Key Features
-
Powerful Light Source: Philips Platinum 17R 350W lamp with 7000K color temperature.
-
3-in-1 Versatility: Beam, Spot, and Wash modes with zoom range from 0°–40°.
-
Precision Optics: 0°–7° (Beam) and 5°–40° (Spot) with electronic focus.
-
Rich Effects Library:
-
14 fixed colors + open with rainbow effect.
-
1 rotating gobo wheel (9 gobos + open).
-
1 static gobo wheel (17 gobos + open).
-
Excellent color macro effects.
-
-
Advanced Effects: Linear dimming (0–100%), 16- & 32-facet rotating prisms, frost effect, and variable strobe speeds.
-
Smooth & Fast Movement: Pan 540° and Tilt 250° with 16-bit resolution.
-
Flexible Control: DMX512, automatic, and master/slave operation with 16/18/20 channel options.
-
Professional Connectivity: 3-pin or 5-pin DMX in/out with LCD display for intuitive operation.
-
Durable & Compact: Rugged housing designed for touring and permanent installations.
