Overview

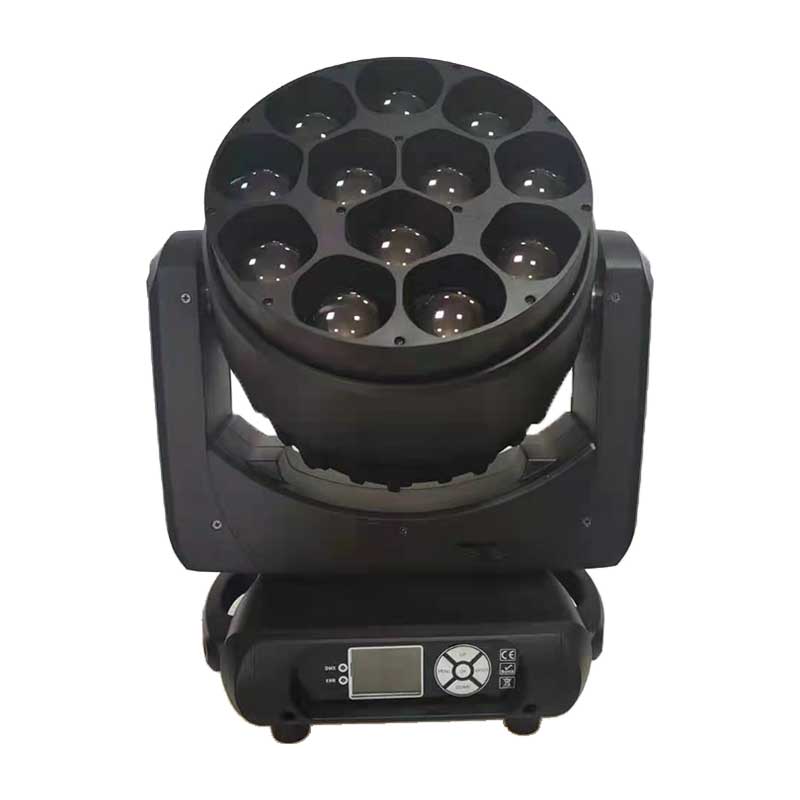

The PL-MN-12QUAD 12x40W LED Moving Head is a high-performance fixture designed for professional stage, event, and entertainment applications. Powered by twelve 40W RGBW 4-in-1 LEDs, it delivers exceptional brightness, smooth color mixing, and dynamic visual effects. With a versatile zoom range of 5°–55°, precise 16-bit pan/tilt movement, and multiple control options, this fixture ensures maximum flexibility for both small venues and large-scale productions.
Key Features
-
Powerful Light Source: 12 x 40W RGBW (4-in-1) LEDs with 50,000-hour lifespan.
-
Smooth Zoom Function: Adjustable beam angle from 5° (narrow beam) to 55° (wide wash).
-
Advanced Dimming & Strobe: 0–100% linear dimming and strobe effect up to 20 FPS, flicker-free for broadcast use.
-
Flexible Control: Supports DMX512 (18/24/68 channels), auto-run, master/slave operation.
-
High Precision Movement: 16-bit resolution for both pan and tilt, ensuring smooth and accurate positioning.
-
User-Friendly Interface: Digital display for easy configuration.
-
Connectivity: 3-pin or 5-pin DMX in/out.
-
Rugged Design: Compact, durable housing with IP20 rating.
-
Lightweight & Portable: Dimensions 38 x 27 x 42 cm, weight 14 kg.
